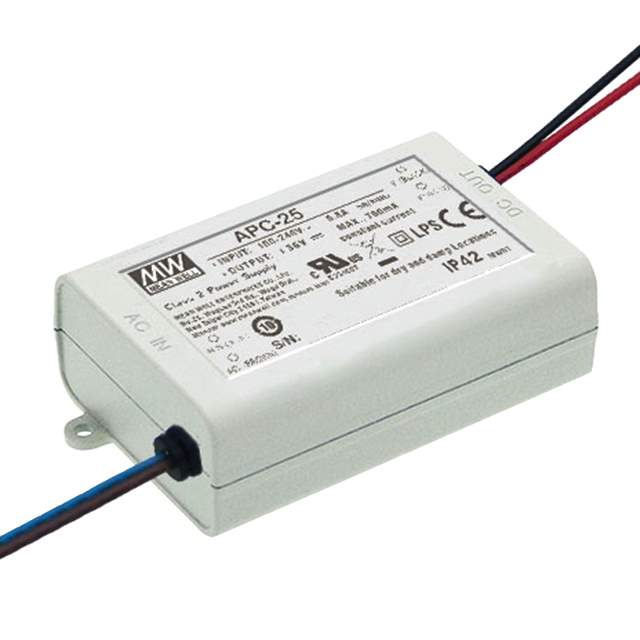

APC-25-500 Real Image
Same model may have multiple batches, images only for reference.

APC-25-500

Part No APC-25-500
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog External/Internal (Off - Board) LED Drivers
Description LED DRVR CC AC/DC 15-50V 500MA / 500mA 15 ~ 50V Constant Current LED Driver AC DC Converter Topology 1 Output
Datasheet
APC-25-500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>LED Drivers
Mfr MEAN WELL USA Inc.
Series APC-25 (25W)
Package Box
Type Constant Current
Topology AC DC Converter
Number of Outputs 1
Voltage - Input (Min) 90VAC
Voltage - Input (Max) 264VAC
Voltage - Output 15 ~ 50V
Current - Output (Max) 500mA
Power (Watts) 25 W
Voltage - Isolation 3 kV
Features OVP, SCP
Ratings IP42
Temperature Range - Operating -30°C ~ 70°C
Efficiency 83%
Termination Style Wire Leads
Dimension 3.31" L x 2.24" W x 1.16" H (84.0mm x 57.0mm x 29.5mm)
Approval Agency CE, UR
Mounting Type Chassis Mount
Base Product Number APC-25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9510
Other Names APC-25-500-ND,1866-1124
Standard Package 72
Win Source Part Number 994016-APC-25-500
Ultra Librarian 3D Model Ultra Librarian APC-25-500 CAD Model

Description

The 994016-APC-25-500 is an external/internal power supply component designed for LED drivers.

  • Type: constant current
  • Termination Style: wire leads
  • Features: OVP and SCP
  • Series: APC-25
  • Power: 25W
  • Voltage Output: 15 ~ 50V
  • Topology: AC DC Converter
  • Voltage Isolation: 3 kV
  • Output: single
  • Maximum Output Current: 500mA
  • Efficiency: 83%
  • Operating Temperature: -30°C to 70°C
