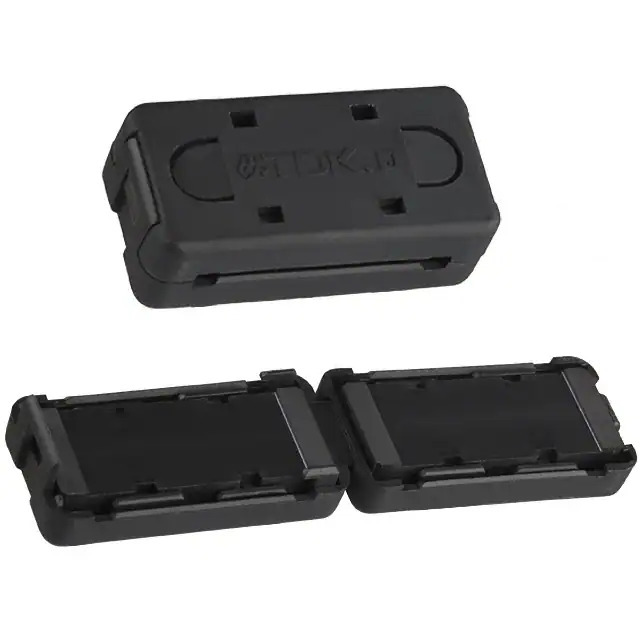

Same model may have multiple batches, images only for reference.
ZCAT3618-2630D-BK TDK Corporation
Same model may have multiple batches, images only for reference.

ZCAT3618-2630D-BK

Part No ZCAT3618-2630D-BK
Manufacturer TDK Corporation
Catalog Cable Ferrites
Description FERRITE CORE 30 OHM HINGED
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Cable Ferrites
Mfr TDK Corporation
Series ZCAT
Package Bulk
Product Status Active
Type Flat
Design Hinged (Snap On)
Impedance @ Frequency 30Ohm @ 50MHz ~ 500MHz
Material 30
Inner Dimension 1.023" W x 0.051" H (26.00mm x 1.30mm)
Outer Dimension 1.398" W x 0.452" H (35.50mm x 11.50mm)
Ratings -
Mounting Type Free Hanging
Length 0.689" (17.50mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8547.10.8000
Win Source Part Number 1369330-ZCAT3618-2630D-BK
Ultra Librarian 3D Model Ultra Librarian ZCAT3618-2630D-BK CAD Model

Description

The ZCAT3618-2630D-BK is a flat cable ferrite filter manufactured by TDK Corporation.

  • Series: ZCAT
  • Impedance: 30 Ohms @ 50MHz to 500MHz
  • Design: Hinged
  • Inner Dimension - Width: 1.023"
  • Inner Dimension - Height: 0.051"
  • Outer Dimension - Width: 1.398"
  • Outer Dimension - Height: 0.452"
  • Length: 0.689" (17.50mm)
  • Mounting Type: Free Hanging
  • REACH: Unaffected
