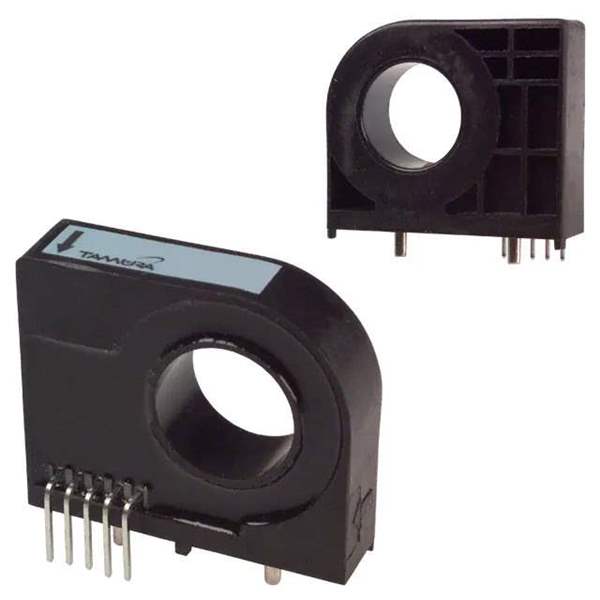

L08P150D15 Real Image
Same model may have multiple batches, images only for reference.

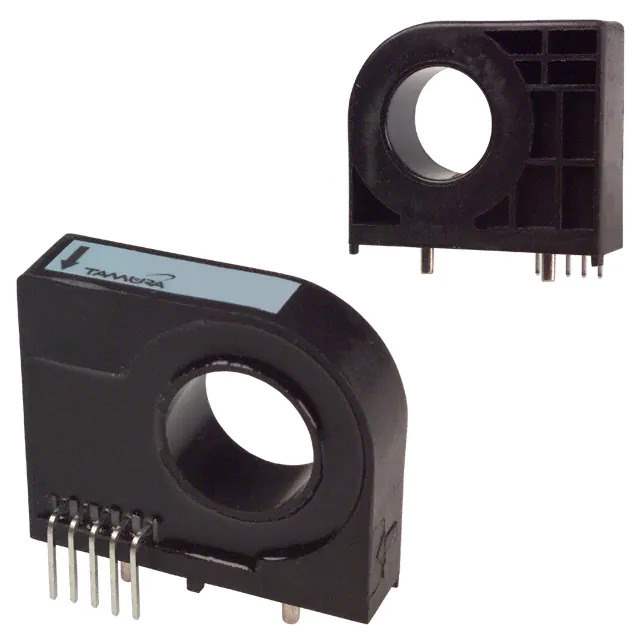

L08P150D15

Part No L08P150D15
Manufacturer Tamura
Catalog Current Transducers
Description SENSOR CURRENT HALL 150A AC/DC / Current Sensor 150A 1 Channel Hall Effect, Open Loop Bidirectional Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Current Sensors
Mfr Tamura
Package Bulk
Product Status Obsolete
For Measuring AC/DC
Sensor Type Hall Effect, Open Loop
Current - Sensing 150A
Number of Channels 1
Output Ratiometric, Voltage
Frequency DC ~ 100kHz
Linearity ±1%
Voltage - Supply ±15V
Response Time 10µs
Current - Supply (Max) 12mA
Temperature Range - Operating -10°C ~ 80°C
Polarization Bidirectional
Mounting Type Through Hole
Package / Case Module
Standard Package 500 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 922586-L08P150D15
Ultra Librarian 3D Model Ultra Librarian L08P150D15 CAD Model

Description

The Tamura 922586-L08P150D15 is a current sensor designed for measuring AC/DC currents up to 150A.

  • Product Name: Tamura 922586-L08P150D15
  • Manufacturer: Tamura
  • Current Measurement: AC/DC currents up to 150A
  • Sensor Type: Open-Loop Hall Effect Sensor
  • Sensitivity: ±1%
  • Response Time: 10μs
  • Supply Voltage: ±15V
  • Current Consumption: 12mA (max)
  • Package: Module
  • Mounting: Through-Hole
  • Operating Temperature Range: -10°C to 80°C
  • Category: Sensors, Transducers - Current Sensors
  • Status: Obsolete
