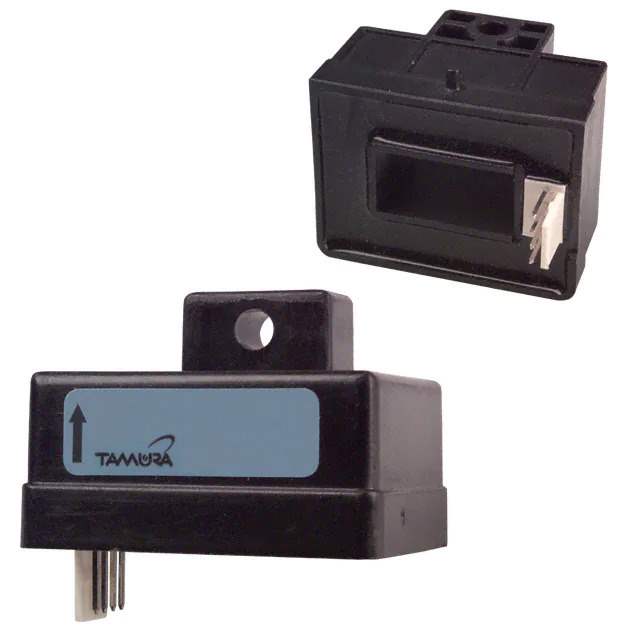

L03S200D15 Real Image
Same model may have multiple batches, images only for reference.

L03S200D15

Part No L03S200D15
Manufacturer Tamura
Catalog Current Transducers
Description SENSOR CURRENT HALL 200A AC/DC / Current Sensor 200A 1 Channel Hall Effect, Open Loop Bidirectional Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Current Sensors
Mfr Tamura
Package Bulk
Product Status Obsolete
For Measuring AC/DC
Sensor Type Hall Effect, Open Loop
Current - Sensing 200A
Number of Channels 1
Output Ratiometric, Voltage
Frequency DC ~ 50kHz
Linearity ±1%
Accuracy ±1%
Voltage - Supply ±15V
Response Time 5µs
Current - Supply (Max) 12mA
Temperature Range - Operating -20°C ~ 80°C
Polarization Bidirectional
Mounting Type Through Hole
Package / Case Module
Standard Package 200 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 922575-L03S200D15
Ultra Librarian 3D Model Ultra Librarian L03S200D15 CAD Model

Description

The Tamura 922575-L03S200D15 is a current sensor that operates in a frequency range of DC to 50kHz.

  • Product Name: Tamura 922575-L03S200D15
  • Manufacturer: Tamura
  • Frequency Range: DC to 50kHz
  • Response Time: 5μs
  • Output: Ratiometric Voltage
  • Polarization: Bidirectional
  • Current Measurement: AC/DC Currents up to 200A
  • Linearity: ±1%
  • Accuracy: ±1%
  • Supply Voltage: ±15V
  • Maximum Current Consumption: 12mA
  • Package: Bulk
  • Standard Package: 200 pcs
  • Mounting: Through-Hole
  • Operating Temperature Range: -20°C to 80°C
  • Status: Obsolete
