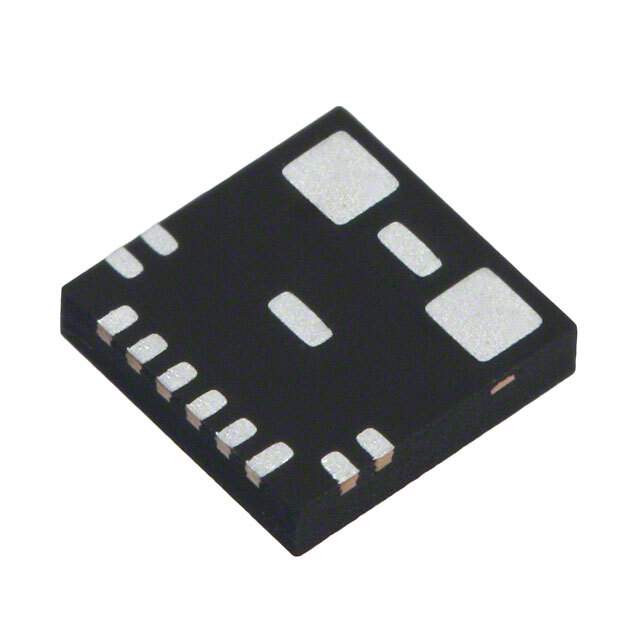

SI8513-C-IMR Real Image
Same model may have multiple batches, images only for reference.

SI8513-C-IMR

Part No SI8513-C-IMR
Manufacturer Skyworks Solutions Inc.
Catalog Current Transducers
Description SENSOR CURRENT XFMR 20A AC / Current Sensor 20A 1 Channel Transformer w/Conditioning Unidirectional 12-VFQFN
Datasheet
SI8513-C-IMR Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Current Sensors
Mfr Skyworks Solutions Inc.
Package Tape & Reel (TR)
Product Status Obsolete
For Measuring AC
Sensor Type Transformer w/Conditioning
Current - Sensing 20A
Number of Channels 1
Output Configurable (3-Modes)
Sensitivity 98mV/A
Frequency 50kHz ~ 1MHz
Accuracy ±5%
Voltage - Supply 2.7V ~ 5.5V
Current - Supply (Max) 7mA
Temperature Range - Operating -40°C ~ 125°C
Polarization Unidirectional
Mounting SMD (SMT)
Package / Case 12-VFQFN
Supplier Device Package 12-QFN (4x4)
Standard Package 2,500
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1235493-SI8513-C-IMR
Ultra Librarian 3D Model Ultra Librarian SI8513-C-IMR CAD Model

Description

The Skyworks Solutions Inc. SI8513-C-IMR is a current sensor used in AC measurement applications.

  • Response Time: 50kHz to 1MHz
  • Polarization: Unidirectional
  • Sensor Type: Transformer w/conditioning type
  • Current Sensing: 20A
  • Sensitivity: 98mV/A
  • Accuracy: ±5%
  • Voltage Supply: 2.7V to 5.5V
  • Temperature Range: -40°C to 125°C
