TSC2008IYZGT

Part No TSC2008IYZGT
Manufacturer Texas Instruments
Catalog Data Acquisition - Touch Screen Controllers
Description IC CTLR TOUCH SCREEN SPI 12DSBGA
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Touchscreen 4 Wire Resistive
Resolution (Bits) 8 b, 12 b
Voltage Reference External
Supply Voltage - Operating 1.2 V to 3.6 V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)

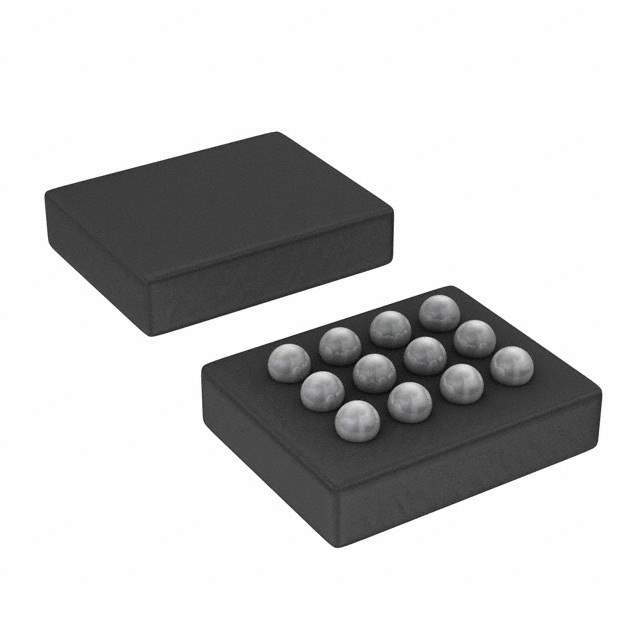

Case / Package 12-DSBGA
Win Source Part Number 1114597-TSC2008IYZGT
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TSC2008IYZGT CAD Model

Description

Introducing the TSC2008IYZGT Touch Screen Controller by Texas Instruments

The TSC2008IYZGT is a cutting-edge touch screen controller designed by the renowned semiconductor company, Texas Instruments. This sophisticated piece of technology is tailored to enhance the interactive experience for a wide array of portable devices such as smartphones, tablets, and personal digital assistants.

At the heart of the TSC2008IYZGT is its precision in capturing touch inputs. It boasts a 12-bit analog-to-digital converter (ADC) that ensures accurate and responsive touch coordinates. This high resolution ADC, combined with the controller's ability to track both stylus and finger touches, makes it an ideal solution for implementing advanced user interfaces and applications that require fine touch precision.

One of the key features of the TSC2008IYZGT is its I²C interface, which allows for easy integration into existing systems. The I²C protocol provides a simple two-wire communication channel that facilitates a seamless connection with microprocessors and microcontrollers, reducing the complexity and cost of system design.

The device also comes with an array of built-in functionalities that are geared towards power efficiency. Its low-power consumption mode is particularly useful for battery-powered devices, ensuring that the touch screen controller does not drain the device's battery life unnecessarily. Additionally, the TSC2008IYZGT has an automatic power-down feature that further conserves energy when the touch screen is inactive.

The TSC2008IYZGT is housed in a compact, surface-mount package, making it suitable for use in devices where space is at a premium. The package is designed to be robust, ensuring reliable operation even in the most demanding of environments.

Overall, the TSC2008IYZGT from Texas Instruments represents a perfect blend of performance, efficiency, and reliability. It is an excellent choice for designers looking to incorporate a touch screen interface into their next-generation portable devices. With Texas Instruments' reputation for quality and support, the TSC2008IYZGT is set to become a staple in the world of interactive technology.
