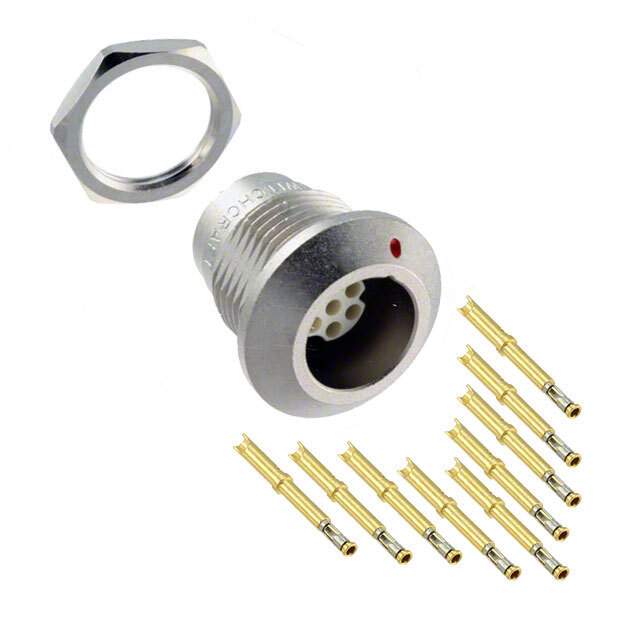

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Switchcraft Inc.
Packaging Bulk
Status Active
Connector Type Receptacle, Female Sockets
Number of Positions 9
Mounting Panel Mount
Termination Crimp or Solder
Fastening Type Push-Pull
Orientation Keyed
Ingress Protection IP66/67/68 - Dust Tight, Water Resistant, Waterproof
Shell Material, Finish Copper Alloy, Nickel Plated, Electroless
Contact Finish Gold
Features Shielded
Voltage Rating 30VAC/DC
Current Rating 2A
Win Source Part Number 1094760-HS2P9F26
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian HS2P9F26 CAD Model

Description

The HS2P9F26 from Switchcraft Inc. is a high-quality electronic component that is designed to provide reliable performance in a variety of applications.

  • Temperature Range: -40°C to 125°C
  • Package: bulk
  • Positions: 9
  • Shielded: for added protection
  • Termination: crimp or solder
  • Fastening Type: push-pull
  • Voltage Rating: 30VAC/DC
  • Current Rating: 2A
  • IP Rating: IP66/67/68
  • Protection: dust tight, water-resistant, and waterproof protection
  • Mountable: panel mountable
  • Orientation: keyed
  • Shell Material: copper alloy
  • Shell Plating: nickel plated electroless
  • Supply and Demand Status: sufficient
