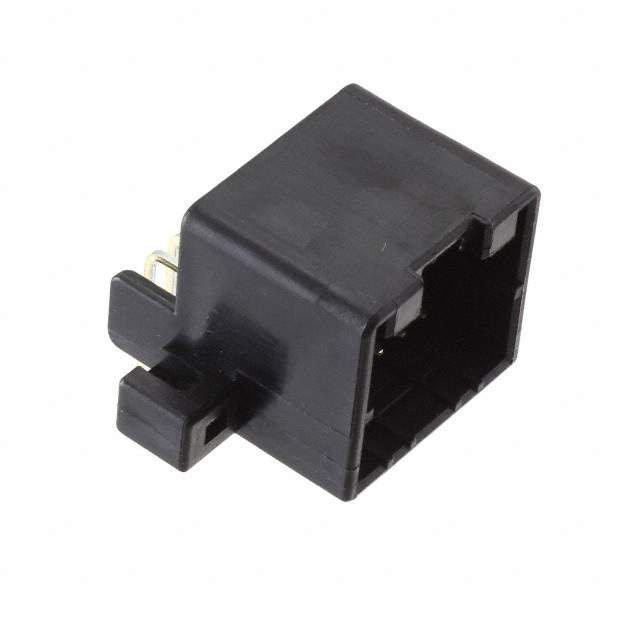

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series Multi-Lock
Packaging Tube
Contact Type Tab
Pitch - Mating 0.098" (2.50mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 12
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.205" (5.20mm)
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Mating 0.276" (7.00mm)
Contact Length - Post 0.157" (4.00mm)
Insulation Height 0.658" (16.71mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polybutylene Terephthalate (PBT)
Features Mounting Flange
Operating Temperature Range -30°C ~ 105°C
Insulation Color Black
Current Rating Varies by Wire Gauge
Applications Automotive, General Purpose
Win Source Part Number 760618-174051-2
Popularity Medium
Supply and Demand Status Limited
Quantity per package 80
Family Name 174051
Introduction Date May 24, 2006
ECCN EAR99
Country of Origin Japan
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 174051-2 CAD Model

Description

The TE Connectivity AMP Connectors Multi-Lock Connector is a versatile and high-quality connector that is designed for use in automotive and general-purpose applications. It features a tube packaging and has 12 positions.

  • Packaging: Tube
  • Positions: 12
  • Operating Temperature: -30°C to 105°C
  • Mounting: Flange
  • Contact Type: Tab
  • All Positions Loaded: Yes
  • Rows: 2
  • Termination Style: Solder
  • Fastening Type: Locking Ramp
  • Contact Material: Brass
  • Voltage Rating: Varies by wire gauge
  • Current Rating: Varies by wire gauge
  • Mounting Style: Through-hole, Right Angle
  • Shrouding: 4 Walls
  • Row Spacing (Mating): 0.205 inches (5.20mm)
  • Contact Length (Post): 0.157 inches (4.00mm)
  • Insulation Material: Polybutylene Terephthalate (PBT)
  • Pitch (Mating): 0.098 inches (2.50mm)
  • Contact Finish (Mating & Post): Tin
