Same model may have multiple batches, images only for reference.

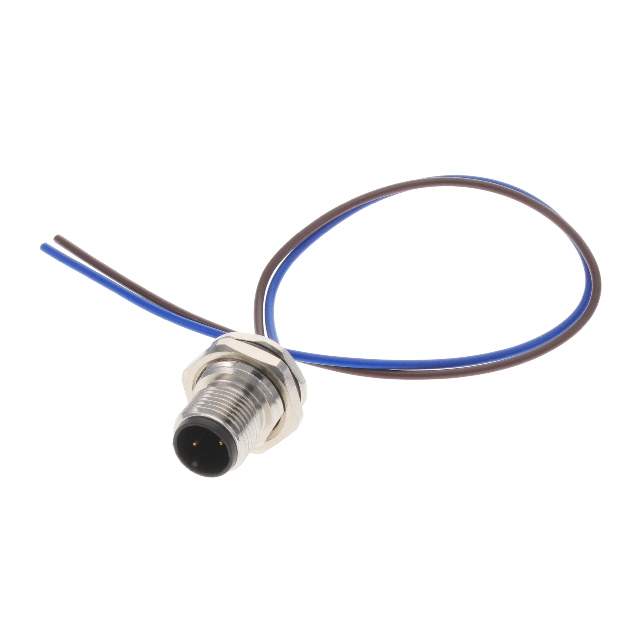

T4171010402-001 Real Image
Same model may have multiple batches, images only for reference.

T4171010402-001

Part No T4171010402-001
Manufacturer TE Connectivity
Catalog Circular Connectors
Description CONN RCPT MALE 2P GOLD WIRE LEAD / 2 Position Circular Connector Receptacle, Male Pins Wire Leads
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors
Mfr TE Connectivity AMP Connectors
Series M12
Package Bulk
Connector Type Receptacle, Male Pins
Number of Positions 2
Shell Size - Insert M12-2
Mounting Type Panel Mount
Mounting Feature Bulkhead - Front Side Nut
Termination Wire Leads
Fastening Type Threaded
Orientation B
Primary Material Metal
Shell Material Copper Alloy
Shell Finish Nickel
Contact Finish - Mating Gold
Color Silver
Ingress Protection IP67 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-0
Shielding Shielded
Current Rating (Amps) 4A
Voltage Rating 250V
Temperature Range - Operating -40°C ~ 85°C
Contact Material Copper Alloy
Contact Finish Thickness - Mating Flash
Insert Material Polyamide (PA), Nylon
Applications Industrial
Base Product Number T41710
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8544.42.9090
Other Names -T4171010402-001-SI,A134653
Standard Package 1
Win Source Part Number 968735-T4171010402-001
Ultra Librarian 3D Model Ultra Librarian T4171010402-001 CAD Model

Description

The M12 series T4171010402-001 circular connector from TE Connectivity AMP Connectors is a receptacle, male pins type connector with 2 positions.

  • Voltage Rating: 250V
  • Current Rating: 4A
  • Application: Industrial
  • IP Rating: IP67
  • Shielded: Yes
  • Shell Size: M12-2
  • Mounting Type: Panel Mount
  • Mounting Feature: Bulkhead - Front Side Nut
  • Shell Material: Copper Alloy with Nickel Finish
  • Insert Material: Polyamide (PA), Nylon
  • ECCN: EAR99
  • REACH: Affected
