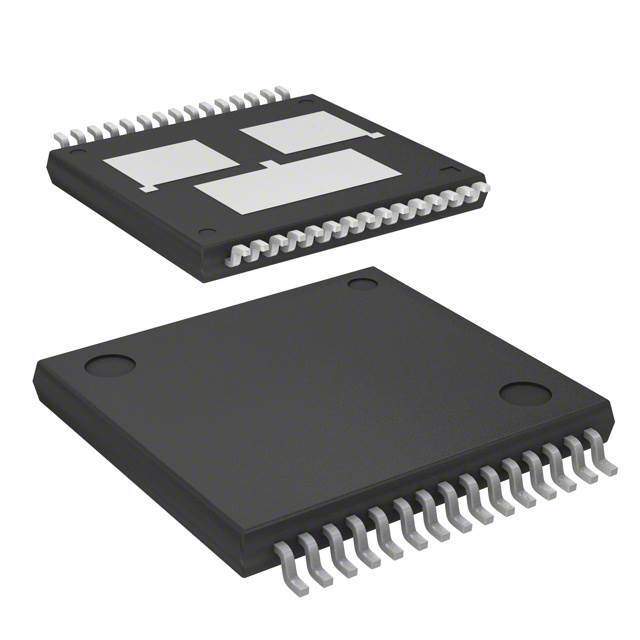

STMicroelectronics VNH3ASP30TR-E Motor Driver

The VNH3ASP30TR-E from STMicroelectronics is a high-power, full-bridge motor driver integrated circuit designed to deliver efficient control of automotive DC motors. This robust driver is capable of driving inductive loads such as relays, solenoids, and DC and stepping motors with ease. Its construction is optimized for low-voltage applications, making it an ideal choice for a wide range of automotive applications.

Key Features

• High Output Current: The device can handle a continuous output current up to 30A, which is suitable for the most demanding applications.
• Operational Voltage Range: It operates over a wide voltage range from 5.5V to 36V, providing flexibility in various automotive electrical systems.
• Thermal Protection: The VNH3ASP30TR-E comes with over-temperature protection, ensuring reliable operation even under extreme conditions.
• Current Sensing: An analog voltage proportional to the motor current can be monitored through the CS pin, allowing for precise control of the motor.
• Diagnostic Feature: The device includes diagnostic functionalities for over-temperature, over-voltage, under-voltage, and over-current, which help to prevent damage to the system.
• Low Standby Power Consumption: The standby mode helps to minimize power consumption when the driver is not actively controlling a motor.

Applications

The VNH3ASP30TR-E is not only robust but versatile, making it suitable for a wide range of automotive applications including:

• Window lifters
• Seat positioners
• Sliding doors
• Sunroof mechanisms
• Electric power steering

Quality and Reliability

STMicroelectronics is committed to delivering high-quality products, and the VNH3ASP30TR-E is no exception. It is manufactured to meet the stringent requirements of the automotive industry, ensuring reliability and performance. The device is also fully protected against load dump and reverse battery conditions, which are critical for automotive power electronics.

Overall, the VNH3ASP30TR-E motor driver is a powerful and reliable solution for modern automotive applications, offering the performance and durability required in today's sophisticated vehicle systems.
