STUSB1702YQTR USB Type-C Controller

The STUSB1702YQTR from STMicroelectronics is a cutting-edge USB Type-C controller designed to streamline the management of USB Type-C ports. With its advanced features and capabilities, this device is ideally suited for a wide range of applications, including smartphones, tablets, laptops, and other consumer electronics that require efficient power delivery and data transfer.

Key Features

• USB Type-C and Power Delivery Compliance: The STUSB1702YQTR is fully compliant with the USB Type-C 1.2 and USB Power Delivery 2.0 specifications, ensuring compatibility with the latest devices and chargers.
• Integrated Protection Features: The device includes a variety of protection features, such as VBUS voltage monitoring, short-circuit protection, and electrostatic discharge (ESD) protection, safeguarding connected devices against electrical mishaps.
• Programmable Power Supply: With its programmable power supply (PPS) feature, the STUSB1702YQTR allows for fine-grained control over the power delivery process, enabling more efficient charging and power management.
• Dead Battery Mode: The controller supports Dead Battery Mode, allowing devices to be charged even when the battery is completely depleted.

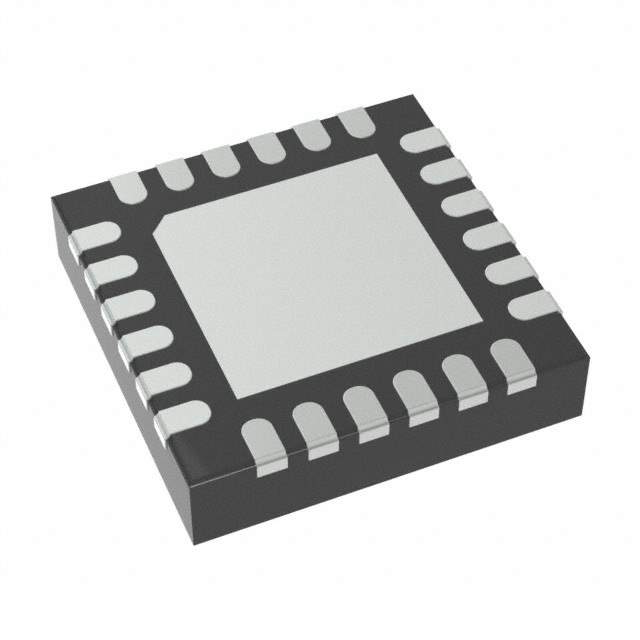

• Small Form Factor: The STUSB1702YQTR comes in a compact QFN-24 package, making it suitable for use in space-constrained applications.

Applications

The STUSB1702YQTR is versatile and can be used in a variety of applications, including:

• Consumer Electronics
• Mobile Devices and Accessories
• Computing and Peripherals
• Industrial Equipment

Technical Specifications

The technical specifications of the STUSB1702YQTR include:

• Supply Voltage: 4.1 V to 22 V
• Operating Temperature: -40°C to 85°C
• Package: QFN-24 (3.3 x 3.3 mm)

In summary, the STUSB1702YQTR from STMicroelectronics is a highly integrated USB Type-C controller that offers a comprehensive solution for managing USB Type-C ports with advanced power delivery and data transfer capabilities. Its robust protection features and small form factor make it an ideal choice for a wide range of electronic devices.
