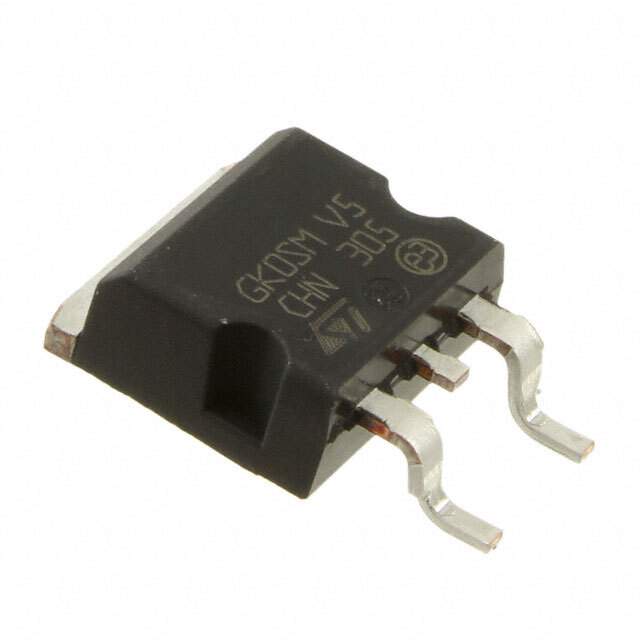

STTH2003CGY-TR Ultrafast Recovery Diode

The STTH2003CGY-TR from STMicroelectronics is a state-of-the-art ultrafast recovery diode, specifically designed to meet the rigorous requirements of high-efficiency power supply units, inverters, and other power conversion applications. This diode is a part of STMicroelectronics' Turbo 2 ultrafast high voltage series, which is renowned for its low conduction and switching losses.

Key Features

• Low Forward Voltage Drop: The diode features a very low forward voltage drop (Vf) that minimizes conduction losses and improves overall efficiency.
• High Switching Speed: With extremely fast switching capability, the STTH2003CGY-TR reduces switching losses and is ideal for high-frequency operations.
• Soft Recovery Characteristics: The soft recovery behavior of the diode ensures reduced electromagnetic interference (EMI) and smooth performance in snubberless designs.
• High Surge Current Capability: It is capable of withstanding high surge currents, making it robust for applications facing transient overloads.

Applications

• Switched-mode power supplies (SMPS)
• Power factor correction circuits (PFC)
• Freewheeling diodes in converters and motor control circuits
• Snubber diodes

Product Specifications

The STTH2003CGY-TR is housed in a D2PAK package, which is suitable for surface mount technology (SMT) and offers excellent thermal performance. It has a repetitive peak reverse voltage (VRRM) of 300 volts and an average forward current (IF(AV)) of 20 amps, making it suitable for handling high power densities. The device operates at junction temperatures ranging from -40°C to +175°C, ensuring reliability across various environmental conditions.

With its high reliability and performance, the STTH2003CGY-TR is an excellent choice for engineers and designers looking to enhance the efficiency and durability of their power conversion systems. STMicroelectronics' commitment to quality and innovation is reflected in this diode, making it a wise selection for cutting-edge electronic designs.
