STTH16L06CGY-TR Ultrafast Recovery Diode

The STTH16L06CGY-TR is a high-performance ultrafast recovery diode designed and manufactured by STMicroelectronics. This component is specifically engineered to meet the rigorous demands of high-efficiency power supply applications, where it provides exceptional switching performance and reduced power losses.

This diode is part of STMicroelectronics' Turbo 2 ultrafast high voltage series, which is characterized by extremely reduced conduction losses, high reliability, and superior thermal performance. The STTH16L06CGY-TR is capable of withstanding a repetitive reverse voltage (V<sub>RRM) of up to 600V, making it suitable for high voltage applications.

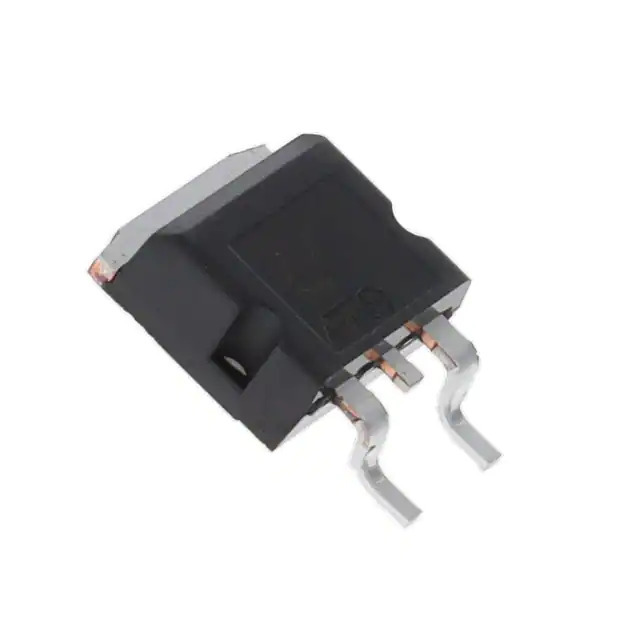

The device comes in a D2PAK (TO-263) surface-mount package, which is known for its compact footprint and ability to handle high current density. This makes the STTH16L06CGY-TR an excellent choice for space-constrained applications that require a robust and reliable diode solution.

Key features of the STTH16L06CGY-TR include:

• Ultrafast switching capability with a reverse recovery time (t<sub>rr) typically less than 35 ns, which enhances the overall efficiency of the system by minimizing switching losses.
• Average forward current (I<sub>F(AV)) of up to 16A, allowing for handling of high power levels.
• Low forward voltage drop (V<sub>F) which contributes to reduced conduction losses and improved thermal efficiency.
• High junction temperature capability, with an operating range typically from -40°C to +175°C, ensuring stability and reliability across various temperature conditions.

Applications for the STTH16L06CGY-TR are diverse and include switch-mode power supplies (SMPS), high-frequency converters, free-wheeling diodes in power supplies, and power factor correction circuits. Its fast recovery time also makes it well-suited for high-speed switching applications such as inverters in renewable energy systems and electric vehicle chargers.

Overall, the STTH16L06CGY-TR from STMicroelectronics is an excellent choice for designers looking for a diode that combines efficient power handling, high-speed switching, and reliability in a compact, surface-mount package.
