STMPE801QTR

Part No STMPE801QTR
Manufacturer STMicroelectronics
Catalog Interface - I/O Expanders
Description I2C Interface 400kHz 3.6V 16-Pin QFN T/R / IC I/O EXPANDER I2C 8B 16QFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Number of I/O 8
Interrupt Output Yes
Features POR
Output Type Push-Pull
Max Frequency 400kHz
Supply Voltage - Operating 1.65 V to 3.6 V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)

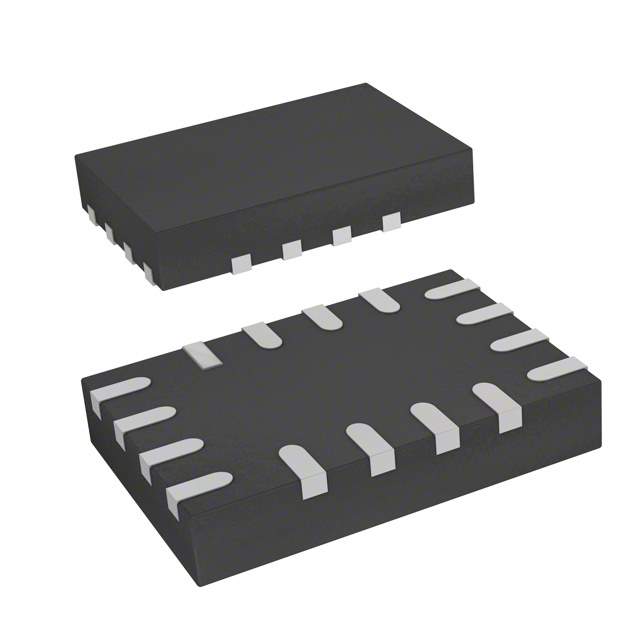

Case / Package 16-QFN (2.6x1.8)
Win Source Part Number 102997-STMPE801QTR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Quantity per package 3k pcs
Family Name STMPE801QTR
Introduction Date December 07, 2006
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian STMPE801QTR CAD Model

Description

The STMPE801QTR from STMicroelectronics is a highly integrated 8-bit General Purpose Input/Output (GPIO) expander with a rich feature set that enhances the capabilities of microcontroller-based systems. This compact and efficient component is designed to minimize the need for additional components, making it an ideal solution for expanding the number of GPIOs in a space-constrained application.

Key Features

  • Interface: The STMPE801QTR utilizes an I²C interface, allowing for easy integration into existing systems without the need for extensive rewiring or complex protocols.
  • 8 GPIO Ports: It provides eight GPIO ports that can be configured as either inputs or outputs, offering versatility for various applications.
  • Interrupt Functionality: The device features an interrupt output which can be configured to alert the host microcontroller of changes to the input pins, thereby reducing the need for constant polling and saving power.
  • Polymorphic Pin Configuration: Each GPIO can be individually set with different functionalities, such as high-impedance input, push-pull output, open-drain output, or pull-up/pull-down configuration.
  • Power Management: The STMPE801QTR supports power-saving modes, making it suitable for battery-operated devices by reducing power consumption when the GPIOs are not in use.

Applications

The versatility of the STMPE801QTR makes it well-suited for a wide range of applications, including:

  • Mobile devices
  • Personal electronics
  • Industrial controls
  • Home automation systems
  • Embedded systems

Package and Quality

The STMPE801QTR is offered in a QFN-16 package, providing a compact footprint that is beneficial for space-constrained applications. STMicroelectronics ensures high-quality standards, and the device is compliant with RoHS and supports a wide temperature range for operation in various environments.

Conclusion

In summary, the STMPE801QTR from STMicroelectronics is a versatile, easy-to-use 8-bit GPIO expander that is an excellent choice for designers looking to add more GPIOs to their systems without increasing complexity or cost. With its I²C interface, configurable pins, and power management features, it offers a balance between functionality and efficiency, making it a valuable component in a variety of electronic products.
