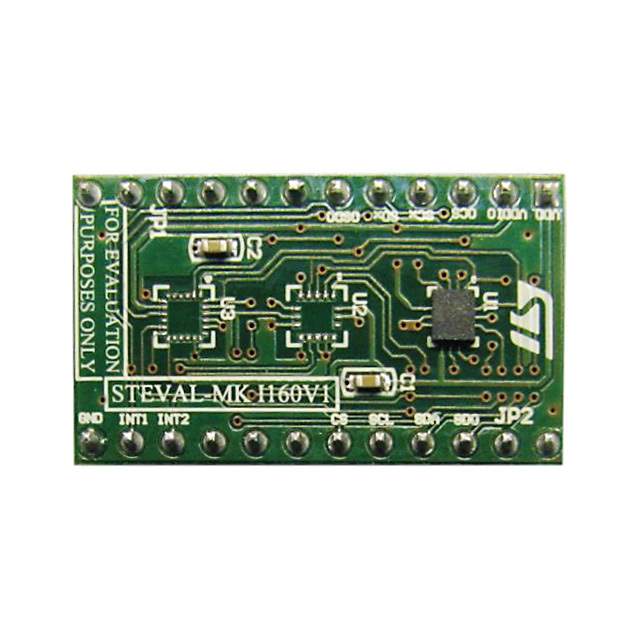

STEVAL-MKI160V1 Motion MEMS and Environmental Sensor Evaluation Board

The STEVAL-MKI160V1 is an advanced sensor evaluation board from STMicroelectronics, designed to provide users with a comprehensive platform for testing and development with ST's state-of-the-art MEMS (Micro-Electro-Mechanical Systems) sensors. This board is an integral part of the modular MEMS adapters motherboard (STEVAL-MKI109V2 or STEVAL-MKI109V3) ecosystem, which is tailored for quick and easy performance assessment of ST's sensors.

At the heart of the STEVAL-MKI160V1 is the LSM6DSOX iNEMO inertial module, which combines a 3D digital accelerometer and a 3D digital gyroscope in a single package. This module is known for its high accuracy, reliability, and power efficiency, making it ideal for a wide range of applications, including gaming and virtual reality input devices, drone flight controls, and wearable sensors for fitness tracking.

In addition to the inertial module, the STEVAL-MKI160V1 also features the LPS22HH MEMS nano pressure sensor and the STTS751 digital temperature sensor, providing a comprehensive set of environmental sensing capabilities. The LPS22HH is a high-accuracy barometric pressure sensor, which is perfect for applications like weather monitoring and altitude tracking, while the STTS751 offers precise temperature measurements crucial for system monitoring and thermal protection.

The board is equipped with a DIL 24-pin socket, making it compatible with the STEVAL-MKI109V2/V3 motherboard, and also provides an adapter for a standard DIL 24-socket for standalone use. This versatility ensures that the STEVAL-MKI160V1 can be used for a wide array of development scenarios.

Developers can take advantage of the extensive software libraries provided by STMicroelectronics, including the STM32Cube software suite, which simplifies the integration of these sensors into a variety of microcontroller-based applications. With the support of the Unico GUI (Graphical User Interface), users can easily configure the sensors and visualize real-time data, significantly accelerating the prototyping and testing phases.

The STEVAL-MKI160V1 is an invaluable tool for engineers and developers looking to explore the capabilities of MEMS sensors and develop innovative products in a time-efficient and cost-effective manner.
