STM32F746G-DISCO

Part No STM32F746G-DISCO
Manufacturer STMicroelectronics
Catalog Evaluation Boards - Embedded - MCU, DSP
Description DISCOVERY STM32 F7 EVAL BRD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1197343-STM32F746G-DISCO
Manufacturer STMicroelectronics
Series STM32F7
Category Development Boards, Kits, Programmers- Evaluation Boards - Embedded - MCU, DSP
Package Box
Product Status Active
Type MCU 32-Bit
Core Processor ARM® Cortex®-M7
Utilized IC / Part STM32 F7
Mounting Type Fixed
Contents Board(s), LCD
Ultra Librarian 3D Model Ultra Librarian STM32F746G-DISCO CAD Model

Description

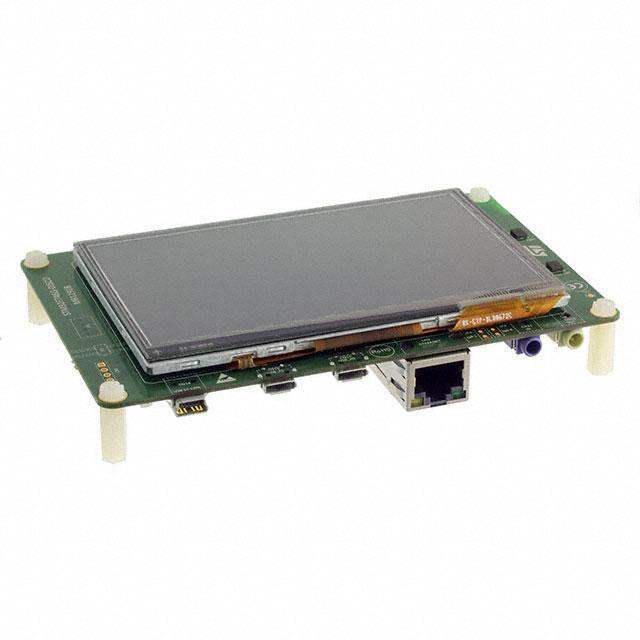

STM32F746G-DISCO Discovery Kit

The STM32F746G-DISCO Discovery Kit from STMicroelectronics is a state-of-the-art development platform that enables rapid prototyping and development for applications requiring high performance, rich graphics, and IoT connectivity. Based on the STM32F746NGH6 microcontroller, it boasts a 32-bit ARM Cortex-M7 core with a maximum frequency of 216 MHz, providing a perfect blend of power efficiency and processing capability.

This discovery kit is equipped with a range of features to facilitate development, including 1 Mbyte of Flash memory and 340 Kbytes of RAM, which provide ample space for complex applications. Additionally, the kit includes a 4.3-inch 480x272 color LCD-TFT with a capacitive touch screen, allowing for the creation of visually appealing user interfaces.

Connectivity options are extensive, with an Ethernet connector, one USB OTG port, and various other inputs and outputs that offer flexibility for peripheral connections. The onboard ST-LINK/V2-1 debugger/programmer simplifies the debugging and programming process, negating the need for additional hardware.

For audio applications, the STM32F746G-DISCO comes with a stereo headphone output jack, digital microphone MEMS, and an S/PDIF RCA input jack, making it ideal for audio processing projects. The board also features a microSD card slot, providing additional storage options for data logging or media storage.

The inclusion of an accelerometer and a gyroscope sensor opens the door to applications in motion sensing and position tracking. With support for Arduino Uno V3 connectivity, this discovery kit is highly expandable, allowing users to add a wide range of specialized shields and modules to their projects.

Overall, the STM32F746G-DISCO Discovery Kit is an excellent choice for developers looking to harness the power of the STM32F7 series microcontrollers for advanced applications in a user-friendly and versatile development environment.
