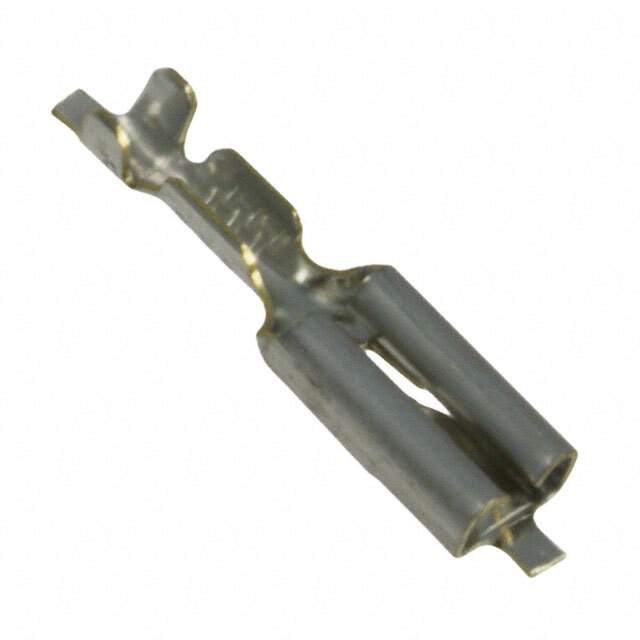

1217281-2 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Fastin-Faston
Package Tape & Reel (TR),Cut Tape (CT)
Terminal Type Standard
Gender Female
Tab Width 0.110" (2.79mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.250" (6.35mm)
Length - Overall 0.550" (13.97mm)
Termination Crimp
Wire Gauge 20-24 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.050" ~ 0.080" (1.27mm ~ 2.03mm)
Base Product Number 1217281
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Names -1217281-2-LSI,A100451CT,12172812,A100451TR,1217281-2-ND,2266-1217281-2TR
Standard Package 9,000
Win Source Part Number 1122867-1217281-2
Ultra Librarian 3D Model Ultra Librarian 1217281-2 CAD Model

Description

The TE Connectivity AMP Connectors Fastin-Faston series is a high-quality connector that is perfect for use in a variety of applications.

  • Termination: Crimp
  • Contact Finish: Tin
  • Insulation: Non-Insulated
  • Package Quantity: 9,000
  • Mounting: Free-Hanging (In-Line)
  • Tab Width: 0.110" (2.79mm)
  • Tab Thickness: 0.032" (0.81mm)
  • Overall Length: 0.550" (13.97mm)
  • Tab Length: 0.250" (6.35mm)
  • Material: Brass
