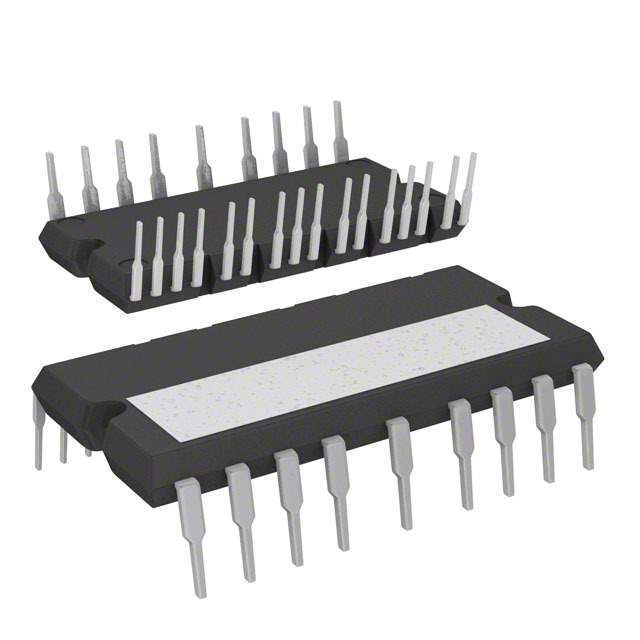

STGIPS14K60T - Intelligent Power Module from STMicroelectronics

The STGIPS14K60T is a cutting-edge Intelligent Power Module (IPM) designed and manufactured by STMicroelectronics, a global semiconductor leader. This module is particularly suitable for driving three-phase brushless DC and AC motors, making it a perfect choice for a variety of applications such as home appliances, industrial drives, cooling fans, and electric pumps.

Key Features

• Integrated Design: The STGIPS14K60T integrates power and control components in a single package, which simplifies design, reduces assembly time, and enhances reliability.
• Advanced IGBT Technology: Utilizing the latest IGBTs, this IPM offers high efficiency and fast switching, contributing to energy savings and reduced thermal stress on the system.
• Overcurrent Protection: The module includes an overcurrent shutdown feature, which enhances the safety and longevity of the application.
• Under-voltage Lockout: All the supply voltages are monitored to ensure safe operation under any condition, preventing damage from under-voltage scenarios.
• Smart Shutdown Function: The smart shutdown capability allows for a safe turn-off in the event of a fault condition.
• Temperature Monitoring: An embedded temperature sensor provides feedback on the module's temperature, enabling thermal protection and management.
• Optimized for 15 kHz Switching Frequency: The STGIPS14K60T is optimized for a switching frequency up to 15 kHz, making it suitable for a wide range of high-performance applications.

Applications

The versatility of the STGIPS14K60T allows it to be used in various applications where efficient power control is necessary. These applications include:

• Home appliances (e.g., washing machines, refrigerators, air conditioners)
• Industrial drives (e.g., conveyor belts, automation systems)
• Cooling fans
• Electric pumps

Conclusion

The STGIPS14K60T from STMicroelectronics represents a blend of innovation and practicality, offering designers a robust, efficient, and compact solution for motor drive applications. Its integrated approach and protective features ensure a reliable performance in a wide array of devices, making it a go-to choice for modern electronic designs.
