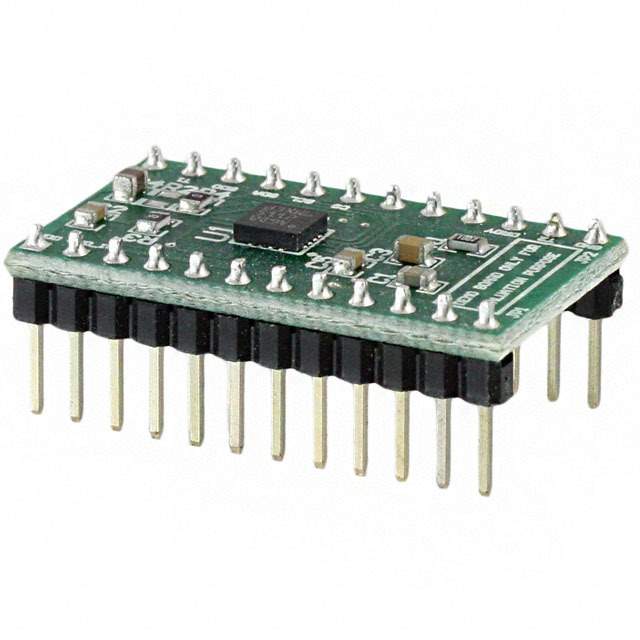

STEVAL-MKI107V1: Motion MEMS and Environmental Sensor Evaluation Board

The STEVAL-MKI107V1 from STMicroelectronics is a sophisticated evaluation platform designed for testing and developing applications using ST's MEMS (Micro-Electro-Mechanical Systems) sensors, including accelerometers, gyroscopes, magnetometers, and environmental sensors such as pressure, humidity, and temperature sensors. This comprehensive evaluation board is an indispensable tool for engineers and developers working on cutting-edge motion detection and environmental monitoring solutions.

Key Features

• Integrated MEMS sensors: The board comes packed with a range of built-in sensors, enabling immediate testing and development without the need for additional components.
• Flexible power supply options: It supports both USB and external power supply sources, ensuring versatility in various development environments.
• DIL 24 socket: This feature allows for easy swapping and testing of various MEMS adapters, which is ideal for rapid prototyping and sensor evaluation.
• Comprehensive software: The board is supported by the Unico GUI (Graphical User Interface), which facilitates data logging, analysis, and configuration of the sensors for a user-friendly experience.

Applications

The STEVAL-MKI107V1 board is perfect for a wide range of applications, including but not limited to:

• Wearable devices
• Smartphone and tablet sensor simulation
• Industrial and automotive navigation systems
• Robotics and drone stabilization systems
• Environmental monitoring and IoT devices

Design and Connectivity

The board has been meticulously designed to offer a compact, yet feature-rich platform for sensor evaluation. It includes an STM32F103 microcontroller for handling the sensor data, which can be interfaced with a PC through a USB connection. The STEVAL-MKI107V1 also offers extension connectors that make it easy to integrate the board within a larger system or to connect additional components for extended functionality.

With the STEVAL-MKI107V1, developers can quickly assess the performance and features of ST's MEMS sensors, and rapidly move from concept to prototype. The board streamlines the design process, enabling faster time-to-market for innovative sensor-based products.
