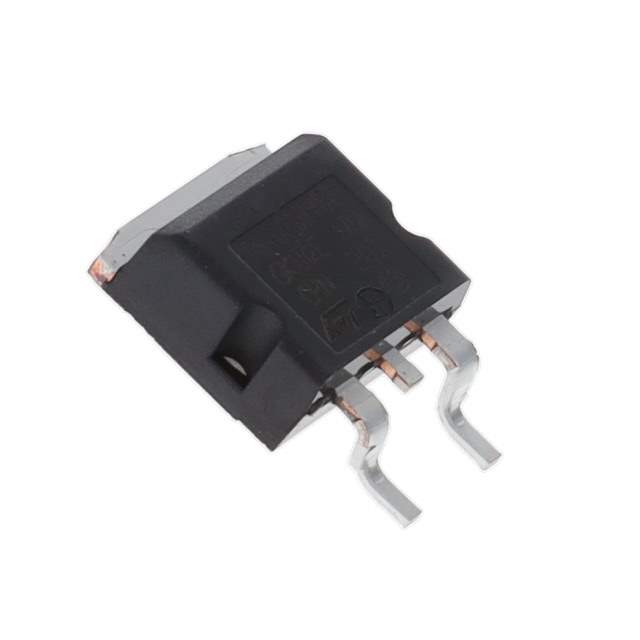

Product Overview: STGB4M65DF2 - STMicroelectronics

The STGB4M65DF2 is a state-of-the-art IGBT (Insulated Gate Bipolar Transistor) from STMicroelectronics, designed for high efficiency and robustness in a wide range of power switching applications. This device is part of ST's series of trench gate field-stop IGBTs, which are well-suited for applications that require fast switching, high current capability, and high voltage operation.

Key Features

• High Voltage Rating: The STGB4M65DF2 is rated for a maximum collector-emitter voltage of 650V, making it suitable for applications that operate at high voltages.
• Low On-State Voltage Drop (V<sub>CE(sat)): The device has a low on-state voltage drop, which results in reduced conduction losses and improved efficiency.
• High Current Rating: With a continuous collector current rating of 4A at 25°C, this IGBT can handle significant power levels.
• High Switching Speed: The fast switching characteristics of this IGBT help to minimize switching losses and improve overall system performance.
• Short-Circuit Rating: The STGB4M65DF2 offers a short-circuit withstand time of 5 µs, providing robustness and reliability under fault conditions.
• Co-Packaged with Free Wheeling Diode: The device comes with an integrated fast recovery diode, which simplifies design and enhances performance in applications such as motor drives and inverters.

Applications

The STGB4M65DF2's features make it ideal for a range of applications, including:

• Switch Mode Power Supplies (SMPS)
• Uninterruptible Power Supplies (UPS)
• Motor Drives
• Welding Equipment
• Solar Inverters
• Induction Heating
• Resonant Converters

Quality and Reliability

STMicroelectronics is renowned for its commitment to quality and reliability, and the STGB4M65DF2 is no exception. It is manufactured to meet the highest industry standards, ensuring consistent performance and durability across a wide range of operating conditions.

Whether you're designing an energy-efficient power supply or a high-performance motor control system, the STGB4M65DF2 from STMicroelectronics offers the performance, reliability, and efficiency you need to create cutting-edge electronic products.
