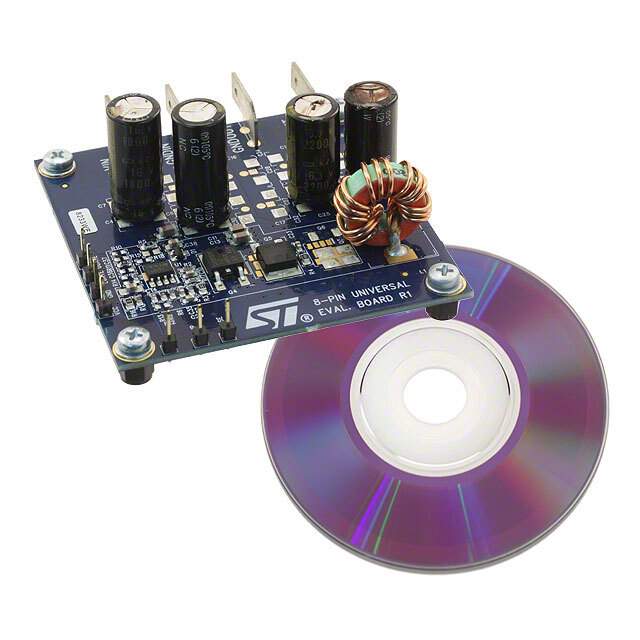

The STEVAL-ISA028V1 from STMicroelectronics is a highly efficient and versatile demonstration board designed for evaluating the performance of the L7986, a step-down switching regulator. This product is an exemplary solution for designers looking for a buck regulator with a wide input voltage range and capable of delivering up to 3A of continuous current to the load.

Key Features

• Adjustable Output Voltage: The board allows for an adjustable output voltage range from 1.235 V to 35 V, making it suitable for a wide array of applications.
• High Efficiency: The L7986 regulator provides excellent efficiency, which can reach up to 95%, minimizing energy loss and heat generation.
• Wide Input Voltage Range: The module can handle an input voltage from 4.5 V to 38 V, offering flexibility for different power supply configurations.
• Thermal Protection: It includes thermal shutdown and current limiting features to ensure the regulator operates within safe parameters.
• Minimal External Components: The design requires very few external components, which simplifies the layout and reduces the overall bill of materials.

Applications

The STEVAL-ISA028V1 is ideal for a variety of applications, including:

• Industrial power supplies
• Consumer electronics
• Telecommunication devices
• Automotive and transportation systems
• Battery-powered applications

Design and Customization

The demonstration board is designed to facilitate easy testing and integration into existing systems. With jumpers and test points, engineers can quickly configure and modify the board to suit their specific needs. The compact size and efficient layout of the STEVAL-ISA028V1 make it an excellent choice for prototyping as well as for use in final products.

Support and Resources

STMicroelectronics provides comprehensive support for the STEVAL-ISA028V1, including detailed technical documentation, application notes, and reference designs. This ensures that engineers have all the necessary information and tools to successfully implement the regulator into their designs.
