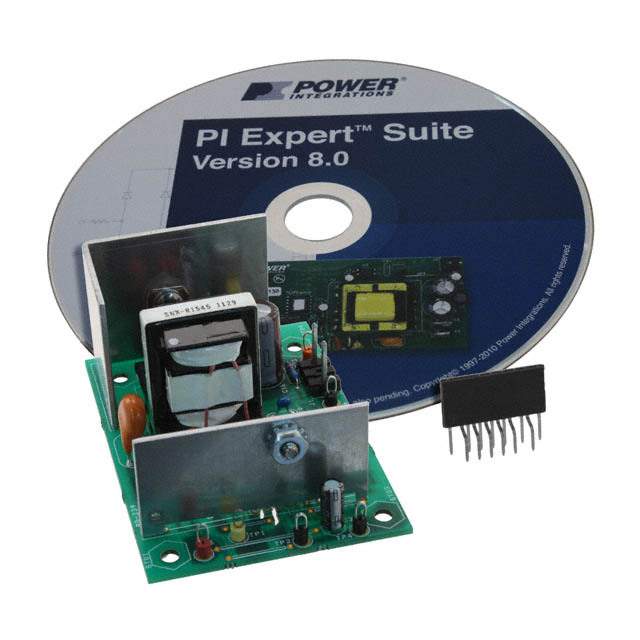

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Development Boards, Kits, Programmers
Manufacturer Power Integrations
Series HiperLCS
Part Status Obsolete(EOL)
Main Purpose DC/DC, Step Down
Outputs and Type 1, Isolated
Power - Output 150W
Voltage - Output 24V
Output Current 6.25A
Voltage - Input 300 V ~ 420 V
Regulator Topology Resonant
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part LCS702HG
Win Source Part Number 778422-RDK-239
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RDK-239 CAD Model

Description

The Power Integrations HiperLCS Series is a resonant regulator topology DC/DC step-down converter that provides an output voltage of 24V and a power output of 150W.

  • Voltage Input Range: 300V to 420V
  • IC/Part: LCS702HG
  • Output: One isolated
  • Board Type: Development Board/Kit/Programmer
  • Popularity: Medium
  • Status: Obsolete (EOL)
  • Supply and Demand Status: Balanced
