Products specifications Report Issue?

Categories Development Boards, Kits, Programmers
Manufacturer Altera
Series Enpirion
Main Purpose DC/DC, Step Down
Outputs and Type 1, Non-Isolated
Voltage - Output 1.8V, 2.1V, 2.2V, 2.5V, 2.6V, 2.9V, 3V or 3.3V
Output Current 1A
Voltage - Input 2.4 V ~ 5.5 V
Regulator Topology Buck
Frequency - Switching 5MHz
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part EP53A7HQI
Win Source Part Number 773998-EVB-EP53A7HQI
Popularity Medium
Supply and Demand Status Sufficient
Family Name EVB-EP53A7HQI
Introduction Date October 14, 2013
ECCN EAR99
Estimated EOL Date 2032
Ultra Librarian 3D Model Ultra Librarian EVB-EP53A7HQI CAD Model

Description

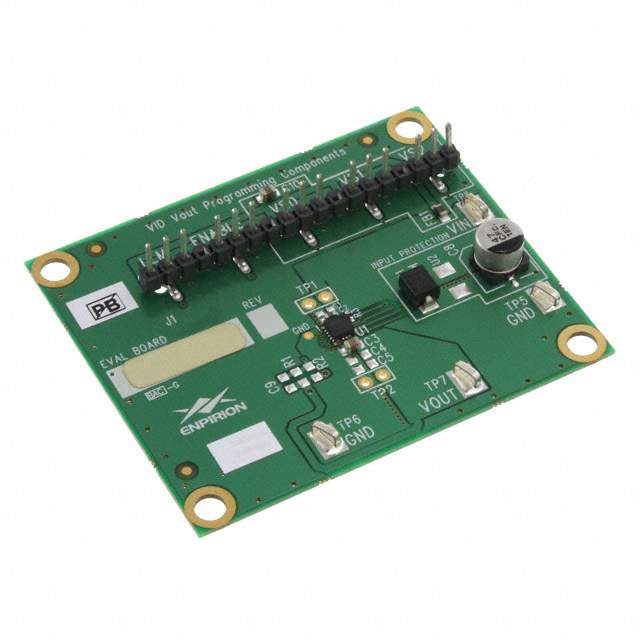

The Altera EVB-EP53A7HQI is a fully populated development board suitable for DC/DC, step-down applications.

  • Topology: Buck
  • Output Voltage: 1.8V, 2.1V, 2.2V, 2.5V, 2.6V, 2.9V, 3V or 3.3V
  • Input Voltage: 2.4 V ~ 5.5 V
  • Switching Frequency: 5MHz
  • Output Current: 1A
  • IC/Part: EP53A7HQI
  • Supply and Demand Status: Sufficient
  • Estimated EOL Date: 2032
