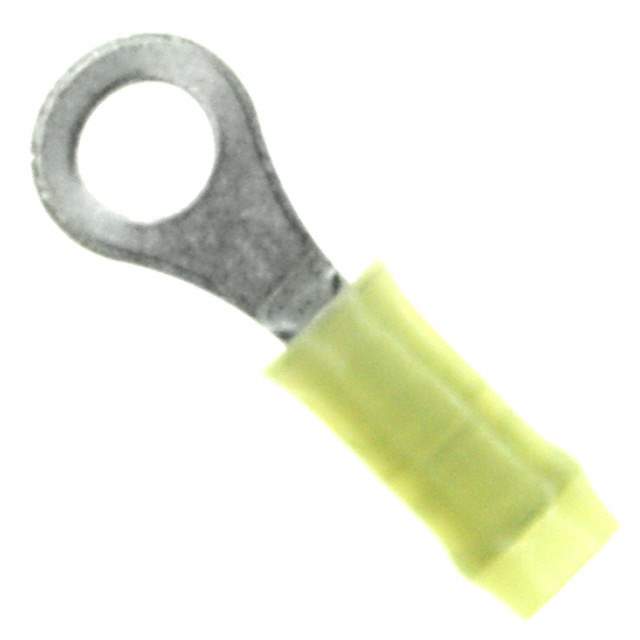

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Ring Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Terminal Type Circular
Stud/Tab Size 4 Stud
Thickness 0.018" (0.46mm)
Width - Outer Edges 0.203" (5.16mm)
Length - Overall 0.646" (16.41mm)
Mounting Free Hanging (In-Line)
Termination Crimp
Wire Gauge 22-26 AWG
Insulation Insulated
Features Serrated Termination
Color Yellow
Contact Material Copper
Contact Finish Tin
Insulation Diameter 0.050" ~ 0.082" (1.27mm ~ 2.08mm)
Material - Insulation Polyamide (PA), Nylon
Base Product Number 3239
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number -2-14492-4220-SI-ND,A0880,-323914-SI,2266-323914,-2-14492-4220-SI
Standard Package 1,000
Win Source Part Number 1333535-323914
Ultra Librarian 3D Model Ultra Librarian 323914 CAD Model

Description

The Ring Connectors are designed for a variety of applications by TE Connectivity AMP Connectors.

  • Features: Serrated
  • Termination: Crimp
  • Contact Finish: Tin
  • Wire Gauge: 22-26 AWG
  • Material: Copper
  • Packaging: Bulk
