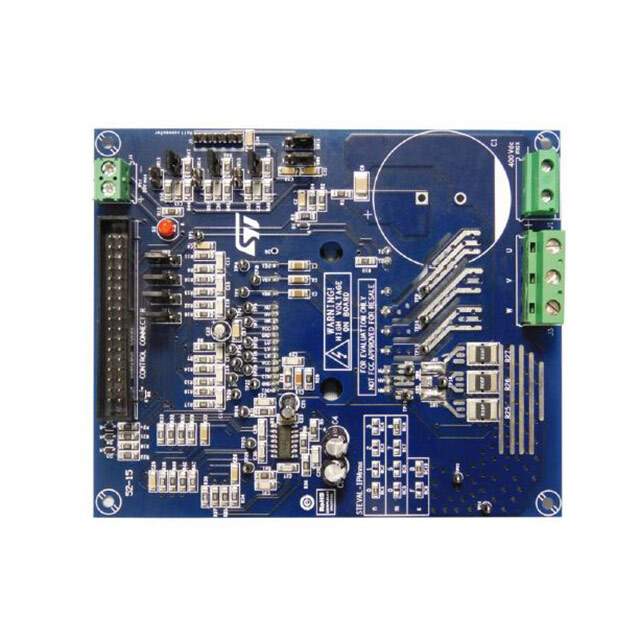

The STEVAL-IPM08B, by STMicroelectronics, is an advanced integrated power module designed for high-efficiency, high-reliability applications. This compact module is a part of ST's SLLIMM™ (Small Low-Loss Intelligent Molded Module) family and is specifically engineered to drive high-power motors in a variety of applications, such as home appliances, fans, pumps, and general-purpose drives.

Key Features

• 600 V, 3 A IGBT-based inverter
• Short-circuit rugged IGBTs
• 3.3 V, 5 V TTL/CMOS inputs with hysteresis
• Integrated bootstrap diodes
• Under-voltage lockout
• Smart shutdown function
• Temperature-sensing NTC thermistor
• Compact and simplified circuit design
• RoHS compliant

Applications

With its robust design and versatile features, the STEVAL-IPM08B is suitable for a broad range of motor control applications, including but not limited to:

• Washing machines
• Refrigerators
• Air conditioners
• Industrial fans and blowers
• Water pumps

Performance and Protection

The module is designed for optimal performance with features such as an integrated bootstrap diode for the high-side gate drive and a smart shutdown function. It also includes an under-voltage lockout to prevent operation at low voltages, which could damage the system. The inclusion of a temperature-sensing NTC thermistor allows for real-time temperature monitoring to ensure reliable operation under varying conditions.

Design Advantages

The STEVAL-IPM08B's compact design allows for a reduction in the overall size of the application, leading to cost savings in terms of both materials and space. It simplifies the circuit design process by integrating multiple functions into a single module, reducing the number of external components required and thus improving system reliability.

As an energy-efficient and eco-friendly product, the STEVAL-IPM08B is compliant with the RoHS directive, making it suitable for use in markets with strict environmental regulations.
