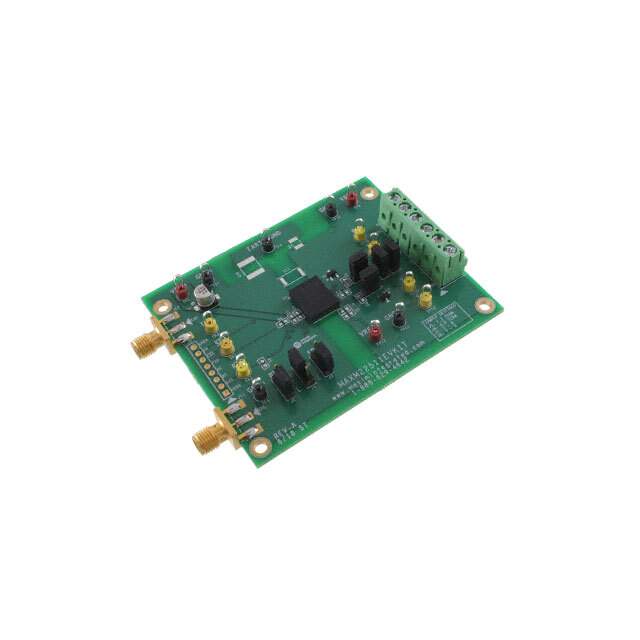

Maxim Integrated MAXM22510EVKIT# Evaluation Kit

The MAXM22510EVKIT# from Maxim Integrated is a comprehensive evaluation kit designed for engineers and developers to test the capabilities of the MAXM22510 IC, an integrated RS-485/RS-422 transceiver with an integrated transformer driver. This evaluation kit serves as a robust platform to prototype, evaluate, and develop industrial communication systems requiring high-speed, bidirectional data communication with galvanic isolation.

Key Features of the MAXM22510EVKIT#

• Integrated RS-485/RS-422 Transceiver: The kit features the MAXM22510 IC, which supports the RS-485 and RS-422 communication standards, providing flexibility for a variety of network configurations.
• Galvanic Isolation: The onboard transformer driver offers up to 600V of galvanic isolation, enhancing system reliability by protecting against noise, ground loops, and surges.
• High-Speed Data Rates: With support for data rates up to 25Mbps, the kit is ideal for high-speed data transmission applications.
• Fully Assembled and Tested: The evaluation kit comes fully assembled and tested, allowing immediate out-of-the-box use and reducing setup time.
• Easy-to-Use Test Points: The board includes convenient test points for easy access to the transceiver's signal pins, facilitating quick measurements and debugging.
• LED Indicators: Onboard LED indicators provide visual feedback for power, signal integrity, and data transmission status, aiding in rapid assessment of circuit functionality.
• Flexible Power Supply Options: The kit can be powered through various options, making it adaptable to different testing environments and requirements.

Applications

The MAXM22510EVKIT# is suited for a wide range of industrial applications, including:

• Industrial control and automation systems
• Building automation and HVAC control
• Networked sensors and actuators
• Motor control interfaces
• Process control equipment

With its robust design and versatile features, the MAXM22510EVKIT# from Maxim Integrated is an essential tool for developers looking to create reliable and efficient industrial communication solutions. Whether it's for prototyping or full-scale development, this evaluation kit provides a solid foundation for working with the MAXM22510 integrated transceiver.
