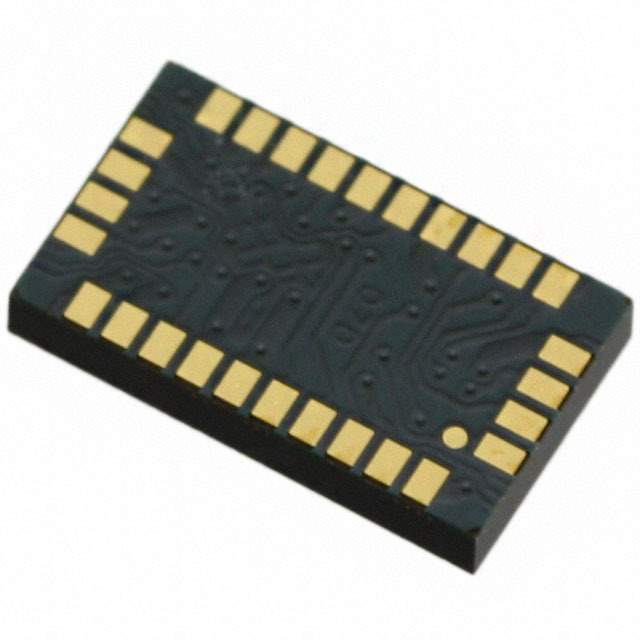

The LSM330DL is a high-performance system-in-package featuring a 3D digital accelerometer and a 3D digital gyroscope designed and manufactured by STMicroelectronics, a global semiconductor leader. This compact and versatile sensor module is ideal for a wide range of applications that require accurate motion and tilt sensing, such as gaming and virtual reality devices, sports equipment, and robotics.

Key Features

• 3D Accelerometer: Measures linear acceleration across three axes with selectable full scales of ±2g/±4g/±8g/±16g.
• 3D Gyroscope: Detects angular rate along three orthogonal axes with a selectable full scale of up to ±2000 dps (degrees per second).
• High Resolution: High-resolution modes enable precise measurements for both accelerometer and gyroscope.
• Embedded Intelligence: Features smart embedded functions such as motion detection, click/double-click recognition, and free-fall detection, enhancing overall system efficiency.
• I2C/SPI Digital Output Interface: Provides flexibility in interfacing with most microcontrollers, enabling easy integration into system designs.
• Power-Efficient: Low-power modes help in reducing power consumption for battery-operated devices, extending their operational lifespan.
• Compact Design: The small footprint of the LSM330DL makes it suitable for space-constrained applications.

Applications

The LSM330DL is designed to be a versatile component for a multitude of applications. It is particularly well-suited for:

• Mobile devices such as smartphones and tablets
• Input devices like game controllers and 3D mice
• Wearable technology including fitness trackers and smartwatches
• Navigation systems for drones and unmanned vehicles
• Industrial applications such as robotics and automation systems

Conclusion

With its high performance, embedded intelligence, and ease of integration, the LSM330DL from STMicroelectronics is an excellent choice for designers looking to add reliable motion sensing capabilities to their next project. Its combination of features ensures that it can meet the needs of the most demanding applications while maintaining power efficiency and a small form factor.
