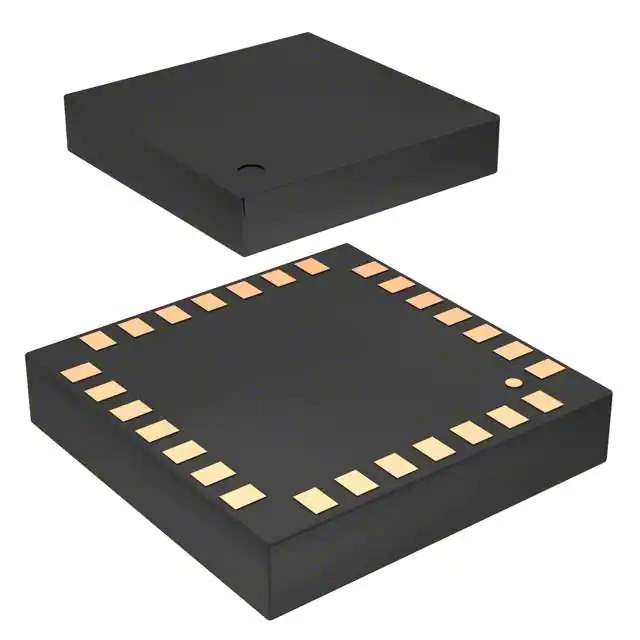

The LSM303DLM is a high-performance system-in-package featuring a 3D digital linear acceleration sensor and a 3D digital magnetic sensor. Manufactured by STMicroelectronics, a leader in the semiconductor industry, this product is designed to provide a compact and efficient solution for advanced navigation and motion-sensing applications.
Key Features
- 3D Magnetometer and Accelerometer: The LSM303DLM integrates both a three-axis magnetometer and a three-axis accelerometer to provide comprehensive motion detection.
- High-Resolution: With selectable full scales of ±2g/±4g/±8g/±16g for the accelerometer and ±1.3/±1.9/±2.5/±4.0/±4.7/±5.6/±8.1 gauss for the magnetometer, the LSM303DLM is capable of detecting even slight changes in orientation and motion.
- I2C/SPI Interface: It supports both I2C and SPI communication, allowing for easy integration with a wide range of microcontrollers and systems.
- Low Power Consumption: The device is optimized for low power consumption, making it suitable for battery-powered applications such as handheld devices.
- Smart Embedded Functions: Features like programmable interrupts and click/double-click recognition add to the versatility of the LSM303DLM, enabling advanced motion detection capabilities.
Applications
The LSM303DLM is ideal for a variety of applications, including:
- Mobile phones and tablets for screen orientation and navigation
- Virtual Reality (VR) and Augmented Reality (AR) devices for accurate motion tracking
- Personal navigation devices and GPS for enhanced accuracy
- Robotics for spatial awareness and control
- Game controllers for an immersive gaming experience
Technical Specifications
Parameter
Value
Supply Voltage
2.16V to 3.6V
Operating Temperature
-40°C to +85°C
Package
LGA-14 (Land Grid Array)
With its robust design and versatile features, the LSM303DLM from STMicroelectronics is the go-to solution for developers looking to add reliable motion and magnetic sensing to their projects.
