Same model may have multiple batches, images only for reference.

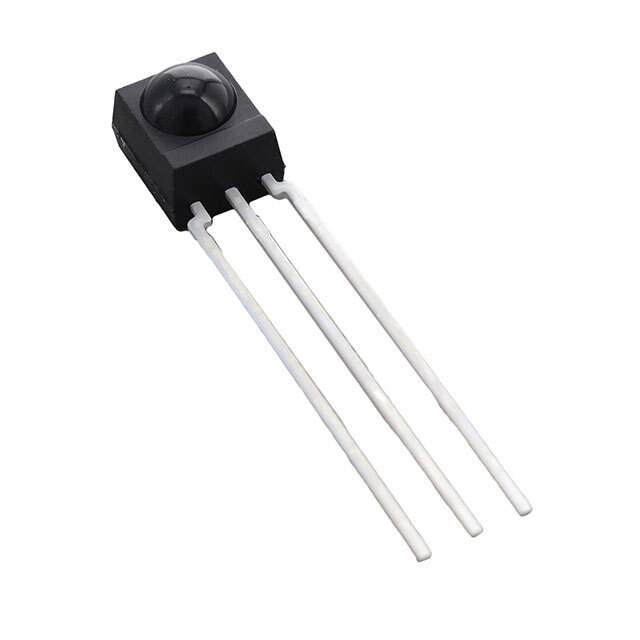

TSOP2136 Real Image
Same model may have multiple batches, images only for reference.

TSOP2136

Part No TSOP2136
Manufacturer Vishay
Catalog Optical Sensors - Photo Detectors - Remote Receiver
Description IC IR RCVR MODULE 36KHZ
Datasheet
TSOP2136 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Sensing Distance 35m
Carrier Frequency 36.0kHz
Supply Voltage - Operating 4.5 V to 5.5 V
Operating Supply Current 1.1mA
Orientation Side View
Mounting Through Hole
Temperature Range - Operating -25°C to 85°C (TA)
Win Source Part Number 057144-TSOP2136
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TSOP2136 CAD Model

Description

The Vishay TSOP2136 is a through-hole side view sensor that belongs to the category of sensors and transducers.

  • Sensing Distance: 35m
  • Supply Voltage: 4.5 V to 5.5 V
  • Operating Supply Current: 1.1mA
  • Carrier Frequency: 36.0kHz
  • Temperature Range: -25°C to 85°C (TA)
  • Packaging: tube/rail
  • Status: active
