ECMF04-4AMX12 by STMicroelectronics

The ECMF04-4AMX12 is a high-performance, low-pass filter network with ESD protection, designed and manufactured by STMicroelectronics, a global leader in semiconductor solutions. This compact and efficient component is specifically crafted to provide superior protection and signal integrity for high-speed data lines in a variety of electronic applications.

Key Features

• Integrated ESD Protection: The ECMF04-4AMX12 features built-in ESD protection capable of withstanding electrostatic discharges up to 15 kV, ensuring the safety and longevity of sensitive electronic components.
• Low-pass Filter Design: Its low-pass filter architecture is optimized for high-speed differential lines, such as USB 2.0, HDMI, and MIPI interfaces, providing excellent signal integrity and minimizing electromagnetic interference (EMI).

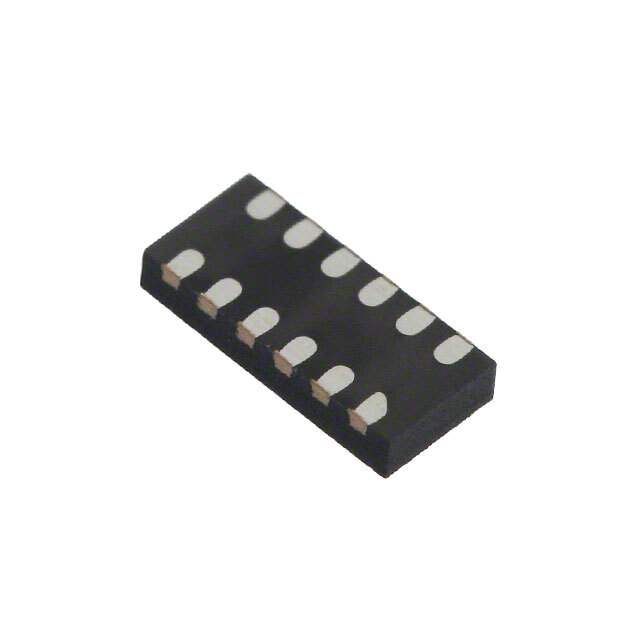

• Ultra-compact Package: Housed in a tiny 1.2 mm x 1.0 mm package, the ECMF04-4AMX12 is ideal for space-constrained applications, allowing designers to save valuable board space without compromising on performance.
• High Data Rate Support: This filter network is designed to support data rates up to 10 Gbps, making it suitable for use in high-speed communication protocols.
• Low Insertion Loss: The ECMF04-4AMX12 maintains a low insertion loss, ensuring that the signal quality is preserved across the filter.

Applications

The ECMF04-4AMX12 is versatile and can be employed in a wide range of applications, including:

• Smartphones and mobile devices
• Portable electronics
• High-speed data interfaces and USB hubs
• Consumer electronics such as digital cameras and multimedia devices
• Computing devices like laptops and tablets

With its robust ESD protection and signal filtering capabilities, the ECMF04-4AMX12 from STMicroelectronics is an essential component for designers looking to enhance the reliability and performance of their high-speed data interfaces. Its integration into electronic systems helps to ensure that devices are not only protected from transient voltage spikes but also capable of maintaining the integrity of high-speed digital signals in noisy environments.
