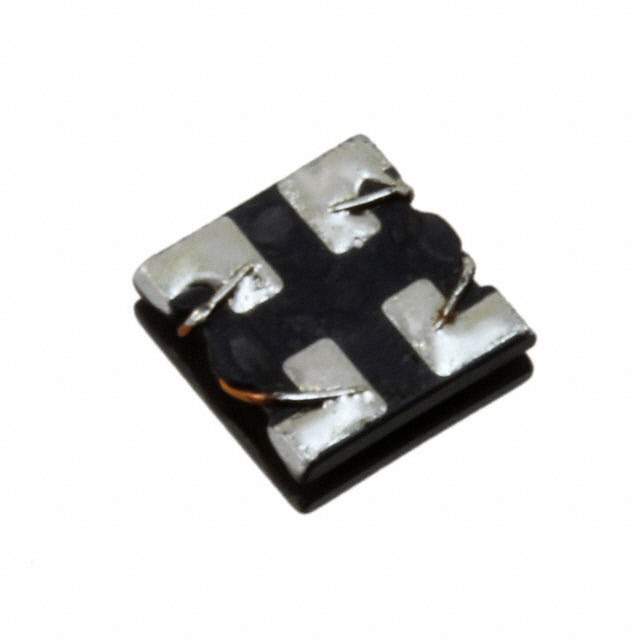

DLW44SM172SK2L Real Image
Same model may have multiple batches, images only for reference.

DLW44SM172SK2L

Part No DLW44SM172SK2L
Manufacturer Murata Electronics North America
Catalog Common Mode Chokes
Description CMC 1.5A 2LN 1.7KOHM SMD / 2 Line Common Mode Choke Surface Mount 1.7 kOhms @ 100 MHz 1.5A DCR 84mOhm
Datasheet
DLW44SM172SK2L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Murata Electronics
Series DLW44
Package Tape & Reel
Filter Type Power Line
Number of Lines 2
Impedance @ Frequency 1.7 kOhms @ 100 MHz
Current Rating (Max) 1.5A
DC Resistance (DCR) (Max) 84mOhm
Voltage Rating - DC 60V
Temperature Range - Operating -40°C ~ 105°C
Mounting Type Surface Mount
Size / Dimension 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height (Max) 0.059" (1.50mm)
Package / Case Horizontal, 4 PC Pad
Base Product Number DLW44SM
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1349993-DLW44SM172SK2L
Ultra Librarian 3D Model Ultra Librarian DLW44SM172SK2L CAD Model

Description

The Murata Electronics DLW44SM172SK2L is a common mode choke with a voltage rating of 60V.

  • Voltage Rating: 60V
  • Height - Seated (Max): 0.157" (4.00mm)
  • Mounting Type: Surface Mount
  • Size / Dimension: 0.157" L x 0.118" W (4.00mm x 3.00mm)
  • Height - Seated (Max): 0.059" (1.50mm)
  • Current Rating (Max): 1.5A
  • Filter Type: Power Line
  • Number of Lines: 2
  • Impedance @ Frequency: 1.7 kOhms @ 100 MHz
