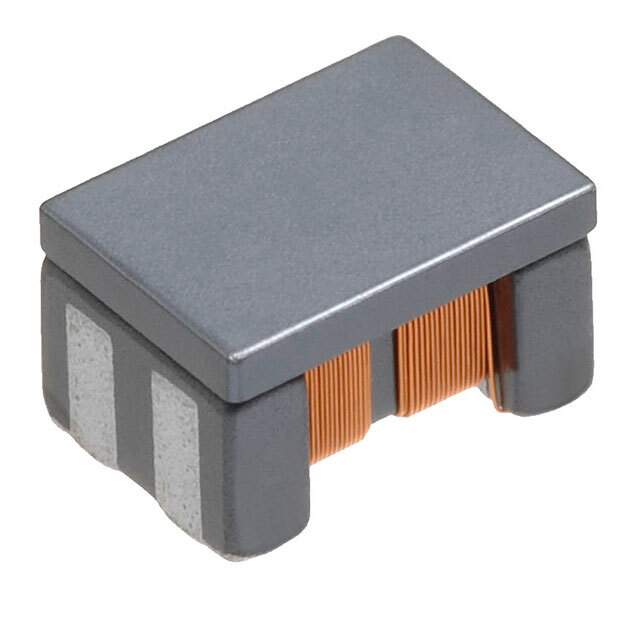

ACT45L-201-2P-TL000

Name: ACT45L-201-2P-TL000
Brand: TDK Corporation
SKU: 767017
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ACT45L-201-2P-TL000
Manufacturer	TDK Corporation
Catalog	Common Mode Chokes
Description	CMC 200UH 100MA 2LN SMD AEC-Q200
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Filters
Manufacturer	TDK Corporation
Series	ACT
Packaging	Reel package
Filter Type	Signal Line
Number of Lines	2
Inductance @ Frequency	200μH @ 100kHz
Current Rating (Maximum)	100mA
DC Resistance (DCR) (Maximum)	4.5 Ohm
Voltage Rating - DC	50V
Operating Temperature Range	-40°C ~ 105°C
Ratings	AEC-Q200
Mounting	SMD
Dimension	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height (Maximum)	0.116" (2.94mm)
Package	Horizontal, 4 PC Pad
Win Source Part Number	767017-ACT45L-201-2P-TL000
Family Name	ACT
ECCN	EAR99
Country of Origin	Japan
Halogen Free	Compliant
Estimated EOL Date	2019
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Limited
Quantity per package	2,500
Ultra Librarian 3D Model	Ultra Librarian ACT45L-201-2P-TL000 CAD Model

Alternative Products

Description

The TDK Corporation ACT45L-201-2P-TL000 is a horizontal, 4 PC pad type filter with 2 lines.

Inductance: 200μH @ 100kHz
Temperature Range: -40°C ~ 105°C
Applications: signal line filtering
Ratings: AEC-Q200
Dimensions: 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height: 0.116" (2.94mm)
Voltage Rating DC: 50V
Applications: automotive
Supply and Demand Status: limited
Quantity per package: 2,500
