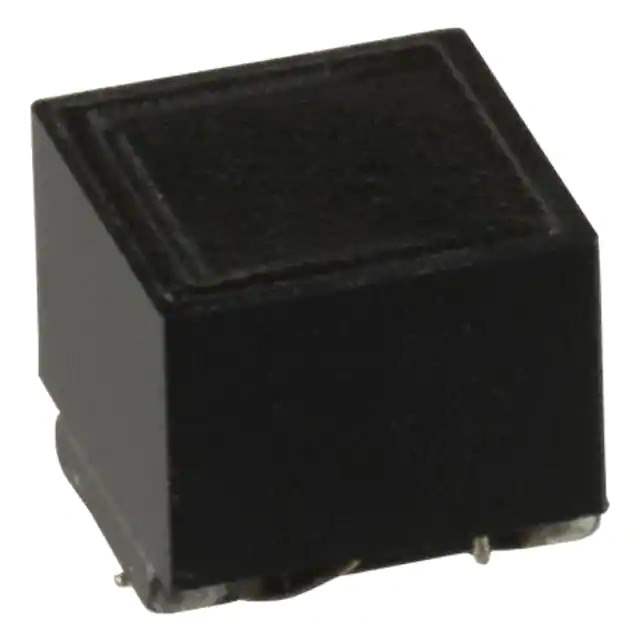

DLW5BSM801TQ2L Real Image
Same model may have multiple batches, images only for reference.

DLW5BSM801TQ2L

Part No DLW5BSM801TQ2L
Manufacturer Murata Electronics North America
Catalog Common Mode Chokes
Description CMC 2A 2LN 800 OHM SMD / 2 Line Common Mode Choke Surface Mount 800 Ohms @ 100 MHz 2A DCR 56mOhm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Murata Electronics
Series DLW5B
Package Tape & Reel
Filter Type Power, Signal Line
Number of Lines 2
Impedance @ Frequency 800 Ohms @ 100 MHz
Current Rating (Max) 2A
DC Resistance (DCR) (Max) 56mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -40°C ~ 105°C
Mounting Type Surface Mount
Size / Dimension 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height (Max) 0.177" (4.50mm)
Package / Case Horizontal, 4 PC Pad
Base Product Number DLW5BSM
Standard Package 400
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1351921-DLW5BSM801TQ2L
Ultra Librarian 3D Model Ultra Librarian DLW5BSM801TQ2L CAD Model

Description

The DLW5BSM801TQ2L is a common mode choke from Murata Electronics.

  • Series: DLW5B
  • Mounting Type: Surface Mount
  • Voltage Rating: 50 V
  • Current Rating: 2A
  • Impedance: 800 Ohms @ 100 MHz
  • Number of Lines: 2
  • Package/Case: Horizontal, 4 PC Pad
  • Temperature Range: -40°C ~ 105°C
  • ECCN: EAR99
  • REACH: Unaffected
  • Standard Package: 400
  • DC Resistance (DCR) (Max): 56mOhm
