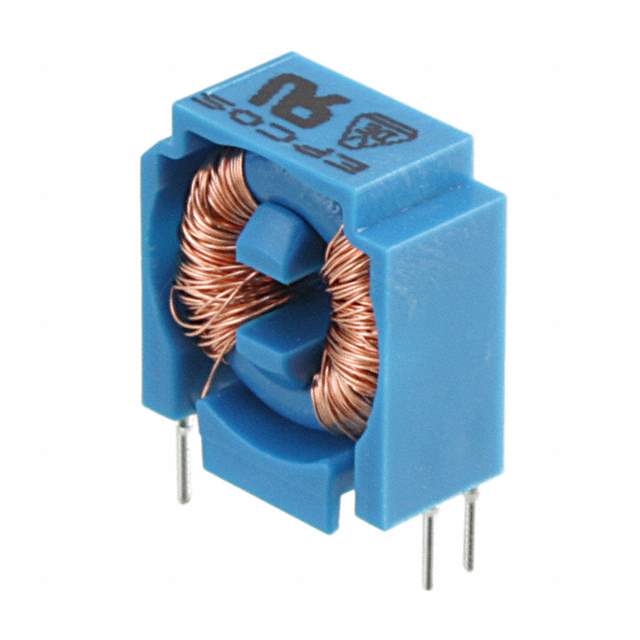

B82791H2701N001 Real Image
Same model may have multiple batches, images only for reference.

B82791H2701N001

Part No B82791H2701N001
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description CMC 4.7MH 700MA 2LN TH / Common Mode Chokes Dual 4700uH 10kHz 0.7A 0.44Ohm DCR Thru-Hole Box
Datasheet
B82791H2701N001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer EPCOS (TDK)
Series B82791
Packaging Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 4.7mH @ 10kHz
Current Rating (Maximum) 700mA
DC Resistance (DCR) (Maximum) 440 mOhm (Typ)
Voltage Rating - AC 250V
Operating Temperature Range -40°C ~ 125°C
Approvals ENEC, UR, VDE
Mounting Style Through Hole
Dimension 0.602" L x 0.291" W (15.30mm x 7.40mm)
Height (Maximum) 0.693" (17.60mm)
Package Vertical, 4 PC Pin
Win Source Part Number 769586-B82791H2701N001
Popularity Medium
Supply and Demand Status Limited
Family Name B82791H
Introduction Date December 20, 2007
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian B82791H2701N001 CAD Model

Description

The B82791H2701N001 filter, manufactured by EPCOS (TDK), is a power line component designed for noise suppression.

  • Voltage Rating: 250V AC
  • Inductance: 4.7mH @ 10kHz
  • Current Rating: 700mA
  • DC Resistance (DCR): 440 mOhm (typ)
  • Package Type: Vertical, 4 PC pin
  • Mounting Style: Through-hole
  • Dimension: 0.602" L x 0.291" W (15.30mm x 7.40mm)
  • Height (maximum): 0.693" (17.60mm)
  • Operating Temperature Range: -40°C to 125°C
