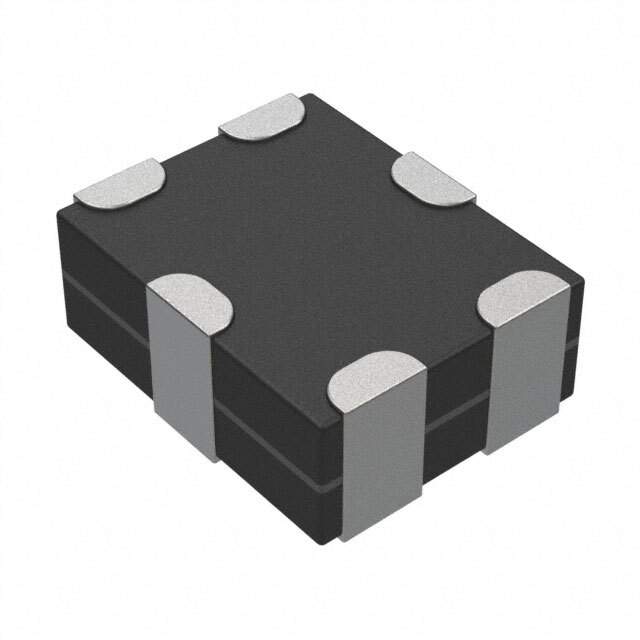

Same model may have multiple batches, images only for reference.

LCFE121002A900TG

Name: LCFE121002A900TG
Brand: Littelfuse Inc.
SKU: 1350871
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	LCFE121002A900TG
Manufacturer	Littelfuse Inc.
Catalog	Common Mode Chokes
Description	CMC 100MA 2LN 90 OHM SMD ESD / 2 Line Common Mode Choke Surface Mount 90 Ohms @ 100 MHz 100mA DCR 4Ohm
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters - Common Mode Chokes
Mfr	Littelfuse Inc.
Series	LCFE
Package	Tape & Reel
Filter Type	Signal Line
Number of Lines	2
Impedance @ Frequency	90 Ohms @ 100 MHz
Current Rating (Max)	100mA
DC Resistance (DCR) (Max)	4Ohm
Voltage Rating - DC	5V
Temperature Range - Operating	-40°C ~ 85°C
Features	ESD
Mounting Type	Surface Mount
Size / Dimension	0.050" L x 0.039" W (1.27mm x 1.00mm)
Height (Max)	0.026" (0.65mm)
Package / Case	0504 (1210 Metric) , 6 Lead
Standard Package	4,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8548.00.0000
California Prop 65	Warning Information
Win Source Part Number	1350871-LCFE121002A900TG
Ultra Librarian 3D Model	Ultra Librarian LCFE121002A900TG CAD Model

Alternative Products

Description

The 1166150 from Littelfuse Inc. is a common mode choke filter that features a package of tape and reel.

Package: Tape and Reel
Voltage Rating: 5V DC
Current Rating: 100mA
Filter Type: Signal Line
Number of Lines: 2
Impedance: 90 Ohms @ 100 MHz
Series: LCFE
Features: ESD
Package / Case: 0504 (1210 Metric)
Number of Leads: 6
Height: 0.026 inches
Length: 0.050 inches
Width: 0.039 inches
RoHS Compliant: Yes
REACH: Unaffected
