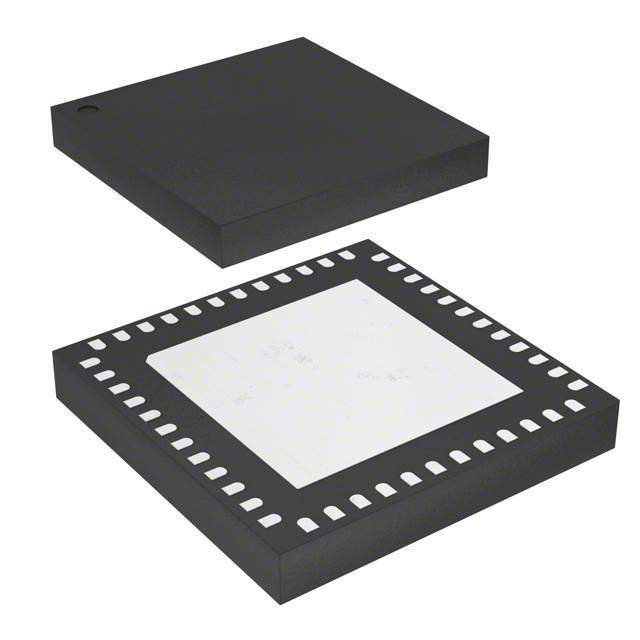

The CLT01-38SQ7-TR from STMicroelectronics is a cutting-edge current limiter termination device that is designed to meet the stringent requirements of industrial communication systems. This advanced component is an integral part of the signal chain in fieldbus networks, providing both protection and signal conditioning functionalities. It is particularly suitable for applications in automation, control systems, and sensor interfaces where reliability and precision are paramount.
Key Features
- High Integration: The CLT01-38SQ7-TR integrates 8 current-limiting terminations, significantly reducing the component count and simplifying the design of bus networks.
- Robust Protection: It offers robust protection against short circuits and overtemperature conditions, ensuring the safe operation of the communication bus under adverse conditions.
- Low Power Dissipation: The device's optimized design results in low power dissipation, making it an energy-efficient choice for bus-powered systems.
- Wide Operating Voltage Range: The CLT01-38SQ7-TR operates over a broad voltage range, accommodating various industrial fieldbus standards.
- Diagnostic Features: Integrated diagnostic capabilities enable the monitoring of the bus status and the detection of fault conditions, facilitating maintenance and troubleshooting.
Applications
The versatility of the CLT01-38SQ7-TR makes it suitable for a wide array of applications across different industries. Some of the typical applications include:
- Industrial automation and control
- Programmable Logic Controllers (PLCs)
- Fieldbus communication interfaces
- Remote I/O modules
- Sensor and actuator networks
Specifications
Parameter
Value
Package
PowerSO-36
Mounting Type
Surface Mount
Operating Temperature
-40°C to +85°C
The CLT01-38SQ7-TR is also available in tape and reel packaging (TR suffix), which is ideal for automated assembly processes, ensuring high throughput and reduced production costs.
