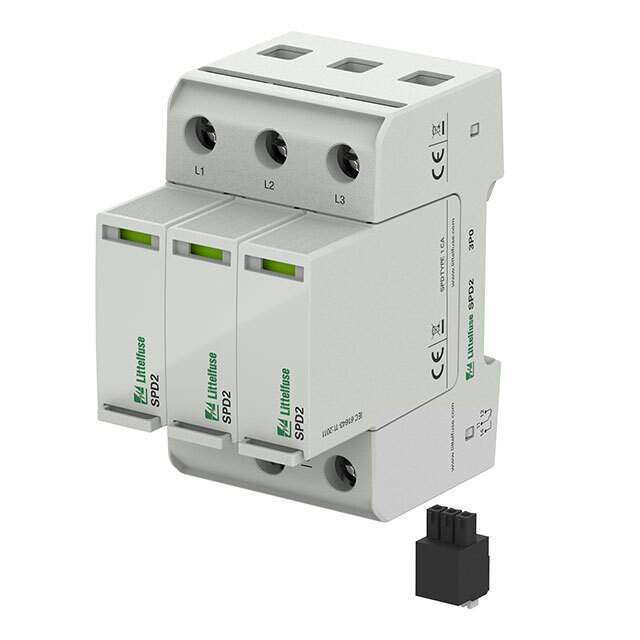

SPD2-550-3P0-R Real Image
Same model may have multiple batches, images only for reference.

SPD2-550-3P0-R

Part No SPD2-550-3P0-R
Manufacturer Littelfuse Inc.
Catalog TVS - Mixed Technology
Description SPD MOD 3P+0 550VAC TYPE 1+2
Datasheet
SPD2-550-3P0-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Surge Protection Devices (SPDs)
Mfr Littelfuse Inc.
Series SPD2 3P+0
Type Type 1, Type 2
Form Base + Module
Number of Poles 3
Voltage - Continuous Operating (Max) (MCOV) 550VAC
Current - Discharge (Nom) (8/20µS) 20 kA
Current - Discharge (Max) (8/20µS) 50 kA
Current - Short Circuit Rating (SCRR) 200 kA
Voltage - Protection Rating (VPR) 2 kV
Voltage - Protection Level (VP) (2416) 2.5 kV
Temperature Range - Operating -40°C ~ 80°C
Features Remote Signaling Contacts, Thermally Protected
Mounting Type DIN Rail
Approval Agency CE, cURus, UL, VDE
Other Names -1024-SPD2-550-3P0-R,F12066
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
Win Source Part Number 1294358-SPD2-550-3P0-R
Ultra Librarian 3D Model Ultra Librarian SPD2-550-3P0-R CAD Model

Description

The 1294358-SPD2-550-3P0-R is a surge protection device that belongs to the circuit protection category.

  • Features: Remote signaling contacts and is thermally protected
  • Package: Standard package
  • Mounting: DIN rail
  • Temperature Range: -40°C to 80°C
  • ECCN: EAR99 compliant
  • Maximum Continuous Operating Voltage: 550VAC
  • Discharge Current: 20 kA
  • Short Circuit Rating: 200 kA
  • Protection Rating: 2 kV
