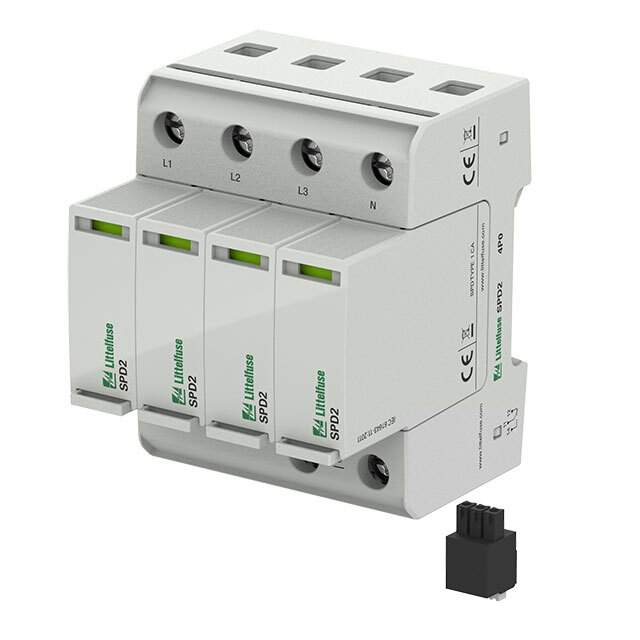

SPD2-480-4P0-R Real Image
Same model may have multiple batches, images only for reference.

SPD2-480-4P0-R

Part No SPD2-480-4P0-R
Manufacturer Littelfuse Inc.
Catalog TVS - Mixed Technology
Description SPD MOD 4P+0 480VAC TYPE 1+2
Datasheet
SPD2-480-4P0-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Surge Protection Devices (SPDs)
Mfr Littelfuse Inc.
Series SPD2 4+0
Type Type 1, Type 2
Form Base + Module
Number of Poles 4
Voltage - Continuous Operating (Max) (MCOV) 480VAC
Current - Discharge (Nom) (8/20µS) 20 kA
Current - Discharge (Max) (8/20µS) 50 kA
Current - Short Circuit Rating (SCRR) 200 kA
Voltage - Protection Rating (VPR) 1.5 kV
Voltage - Protection Level (VP) (2416) 2.3 kV
Temperature Range - Operating -40°C ~ 80°C
Features Remote Signaling Contacts, Thermally Protected
Mounting Type DIN Rail
Approval Agency CE, cURus, UL, VDE
Other Names -1024-SPD2-480-4P0-R,F12064
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
Win Source Part Number 1294354-SPD2-480-4P0-R
Ultra Librarian 3D Model Ultra Librarian SPD2-480-4P0-R CAD Model

Description

The 1294354-SPD2-480-4P0-R electronic component is a surge protection device manufactured by Littelfuse Inc.

  • Product Type: Type 1 and Type 2 circuit protection device
  • Features: Remote signaling contacts and thermal protection
  • Voltage - Continuous Operating (Max) (MCOV): 480VAC
  • Current - Discharge (Nom) (8/20µS): 20 kA
  • Current - Discharge (Max) (8/20µS): 50 kA
  • Current - Short Circuit Rating (SCRR): 200 kA
  • Voltage - Protection Rating (VPR): 1.5 kV
  • Voltage - Protection Level (VP) (2416): 2.3 kV
  • Operating Temperature: -40°C to 80°C
