Same model may have multiple batches, images only for reference.

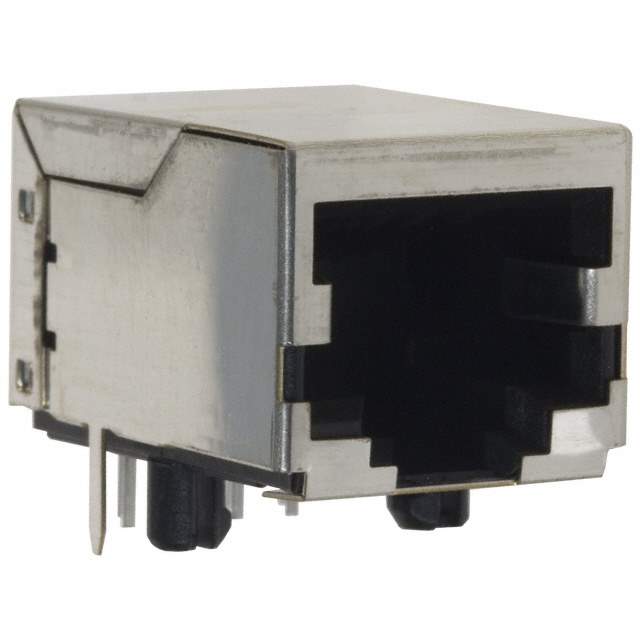

SS-6488S-A-NF Real Image
Same model may have multiple batches, images only for reference.

SS-6488S-A-NF

Part No SS-6488S-A-NF
Manufacturer Stewart Connector
Catalog Modular Connectors
Description CONN MOD JACK 8P8C R/A SHIELDED / Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded
Datasheet
SS-6488S-A-NF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Modular Connectors - Modular Connector Jacks
Mfr Stewart Connector
Series 64
Package Tube
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Number of Ports 1
Number of Rows 1
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Shielding Shielded
Features Board Lock
LED Color Does Not Contain LED
Tab Direction Down
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Housing Material Thermoplastic
Temperature Range - Operating -40°C ~ 85°C
Base Product Number SS-6488S
Standard Package 33
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1338102-SS-6488S-A-NF
Ultra Librarian 3D Model Ultra Librarian SS-6488S-A-NF CAD Model

Description

The Stewart Connector 1338102-SS-6488S-A-NF is a shielded modular connector jack with 8p8c (RJ45, Ethernet) contacts.

  • Contacts: 8p8c (RJ45, Ethernet)
  • Angle: 90° (Right)
  • Mounting: Through-Hole
  • Feature: Board Lock
  • Housing Color: Natural
  • Housing Material: Thermoplastic
  • Contact Material: Phosphor Bronze
  • Contact Finish: Gold
  • Finish Thickness: 30.0 µin
  • Operating Temperature: -40°C to 85°C
  • REACH: Unaffected
