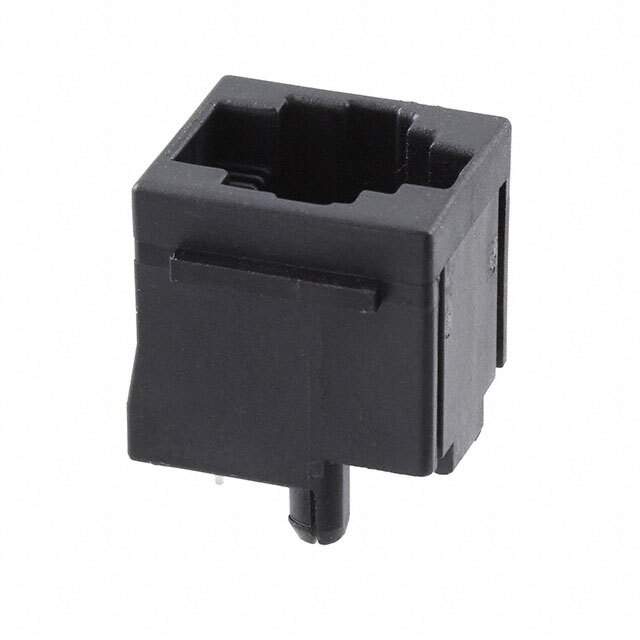

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Modular Connectors - Jacks
Mfr TE Connectivity AMP Connectors
Package Tray
Connector Type Jack
Number of Positions/Contacts 6p6c (RJ11, RJ12, RJ14, RJ25)
Number of Ports 1
Number of Rows 1
Mounting Type Through Hole
Orientation Vertical
Termination Solder
Shielding Unshielded
Ratings Cat3
Features Board Lock, Panel Stops
LED Color Does Not Contain LED
Tab Direction User Selectable
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 50.0µin (1.27µm)
Housing Material Polybutylene Terephthalate (PBT), Polyester
Temperature Range - Operating -40°C ~ 85°C
Base Product Number 5520258
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names A31411,-5520258-3-SI,55202583,2266-5520258-3
Standard Package 144
Win Source Part Number 1030234-5520258-3
Ultra Librarian 3D Model Ultra Librarian 5520258-3 CAD Model

Description

The 1030234-5520258-3 is a through-hole modular connector jack designed for use in Cat3 applications. Bold the product name 1030234-5520258-3.

  • Type: through-hole modular connector jack
  • Application: Cat3 applications
  • Positions/Contacts: six positions/contacts
  • Temperature Range: -40°C to 85°C
  • Manufacturer: TE Connectivity AMP Connectors
  • Packaging: tray package
  • Contact Material: phosphor bronze
  • Contact Finish: gold
  • Finish Thickness: 50.0µin (1.27µm)
  • RoHS: compliant
  • Feature: board lock and panel stops feature
  • The 1030234-5520258-3 is an ideal choice for applications that require reliable and efficient signal transmission.
