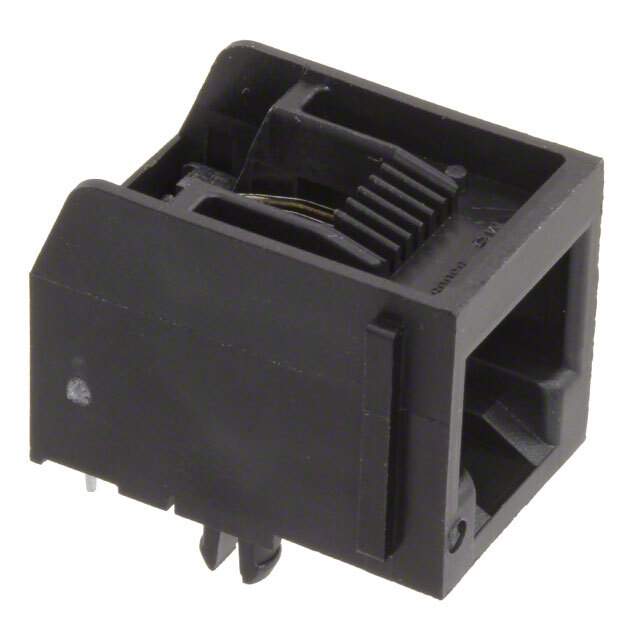

Same model may have multiple batches, images only for reference.

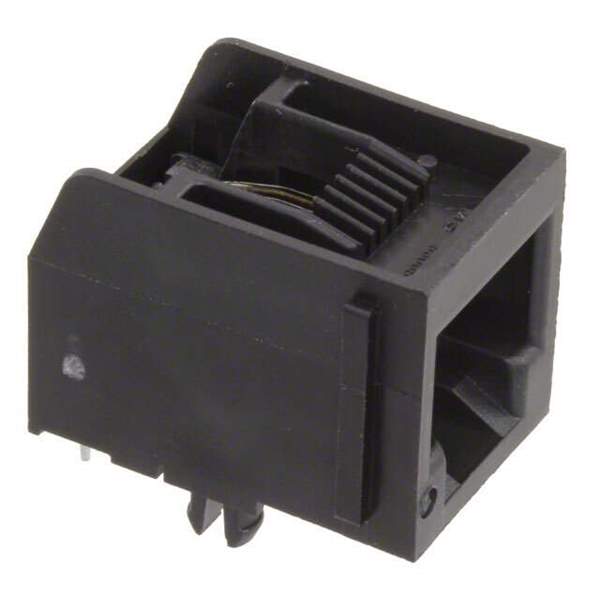

95009-7661 Real Image
Same model may have multiple batches, images only for reference.

95009-7661

Part No 95009-7661
Manufacturer Molex, LLC
Catalog Modular Connectors
Description Conn Modular Jack F 6 POS 1.27mm Solder RA Thru-Hole 6 Terminal 1 Port Cat 3 Tray
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Contact Material Brass, Bronze
Contact Plating Gold
Contact Resistance 20 mΩ
Country of Origin RO
Current Rating 1.5 A
Depth 20.57 mm
Flammability Rating UL94 V-0
Gender Receptacle
Height 13.59 mm
Hole Diameter 3.25 mm
Housing Color Black
Housing Material Polyester
Insulation Resistance 500 MΩ
Length 13.21 mm
Material Polyester
Maximum Operating Temperature 80 °C
Max Voltage Rating (DC) 125 V
Min Operating Temperature -40 °C
Mount Through Hole
Number of Contacts 6
Number of Pins 6
Number of Ports 1
Number of Positions 6
Number of Positions Loaded 6
Orientation Right Angle
Panel Thickness 1.6 mm
Pitch 1.27 mm
Plating Tin
REACH SVHC Unknown
RoHS Compliant
Shielding Unshielded
Termination Through Hole
Voltage Rating (DC) 125 V
Width 16 mm
Win Source Part Number 1032022-95009-7661
Categories Modular Connectors
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 95009-7661 CAD Model

Description

This Molex connector has a pitch of 1.27 mm and 6 positions.

  • Pitch: 1.27 mm
  • Positions: 6
  • Current Rating: 1.5A
  • Voltage Rating: 125V
  • Connector Type: Receptacle
  • Housing Material: Polyester
  • Contact Material: Brass and bronze
  • Contact Plating: Gold
  • Maximum Operating Temperature: 80°C
  • Minimum Operating Temperature: -40°C
  • Mounting Type: Through-hole
  • Panel Thickness: 1.6 mm
