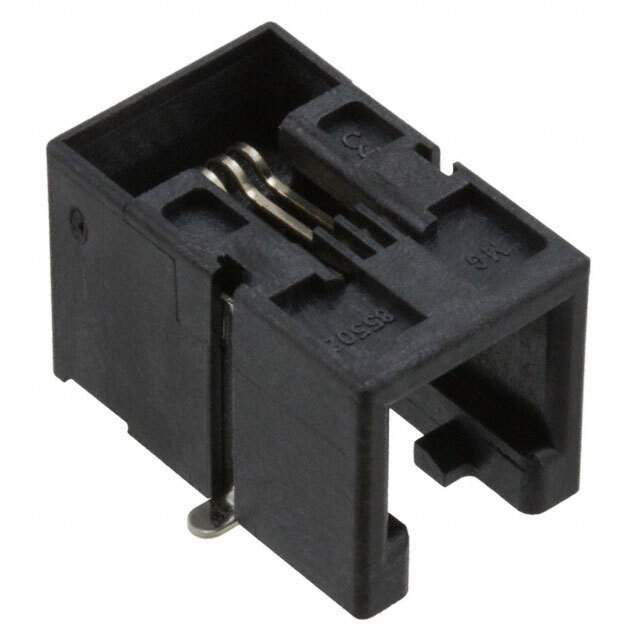

85502-5005 Real Image
Same model may have multiple batches, images only for reference.

85502-5005

Part No 85502-5005
Manufacturer Molex, LLC
Catalog Modular Connectors
Description Modular Connectors / Ethernet Connectors RA MODULAR JACK SMT LOW PROFILE 4/4
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Connector Type Socket
Contact Material Copper
Contact Plating Gold
Contact Resistance 20 mΩ
Country of Origin IE
Current Rating 20 A
Depth 18.1 mm
Flammability Rating UL94 V-0
Gender Female
Halogen Free Low Halogen
Housing Color Black
Housing Material Polymer
Insulation Resistance 500 MΩ
Length 14.13 mm
Maximum Operating Temperature 80 °C
Max Voltage Rating (AC) 125 V
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Circuits 2
Number of Contacts 4
Number of Pins 2
Number of Ports 1
Number of Positions 4
Number of Positions Loaded 4
Orientation Right Angle
Packaging Cut Tape
Pitch 1.27 mm
Plating Tin
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Shielding Unshielded
Termination SMD/SMT
Voltage Rating (AC) 125 V
Width 11.5 mm
Win Source Part Number 1015851-85502-5005
Categories Modular Connectors
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 85502-5005 CAD Model

Description

The 1015851-85502-5005 electronic component is a product manufactured by Molex, LLC.

  • Package: Cut Tape
  • Positions: 4
  • Pitch: 1.27 mm
  • Color: Black
  • Connector Type: Socket
  • Positions Loaded: 4
  • Termination: SMD/SMT
  • Contact Material: Copper
  • Current Rating: 20 A
  • Circuits: 2
  • Orientation: Right Angle
  • Contact Plating: Gold
  • Housing Color: Black
