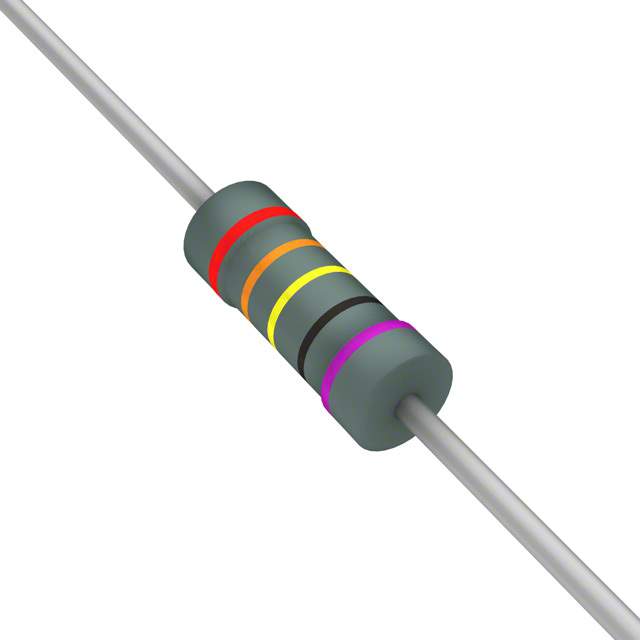

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Resistors
Manufacturer Stackpole Electronics Inc.
Series RNF
Packaging Tape in Box
Resistance (Ohms) 234
Tolerance ±0.1%
Power (Watts) 0.25W, 1/4W
Composition Metal Film
Features Flame Retardant Coating, Safety
Temperature Coefficient ±25ppm/°C
Operating Temperature Range -55°C ~ 155°C
Package Axial
Manufacturer Package Axial
Dimension 0.093" Dia x 0.250" L (2.35mm x 6.35mm)
Number of Terminations 2
Win Source Part Number 766475-RNF14BAE234R
Popularity Medium
Supply and Demand Status Limited
Family Name RNF
Introduction Date September 21, 2010
ECCN EAR99
Country of Origin China, Japan
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian RNF14BAE234R CAD Model

Description

The Stackpole Electronics Inc. RNF14BAE234R is a resistor manufactured by Stackpole Electronics Inc.

  • Power (Watts): 0.25W, 1/4W
  • Resistance (Ohms): 234
  • Composition: Metal Film
  • Tolerance: ±0.1%
  • Temperature Coefficient: ±25ppm/°C
  • Dimension: 0.093" Dia x 0.250" L (2.35mm x 6.35mm)
  • Package: Axial
  • Popularity: Medium
  • Supply/Demand Status: Limited
