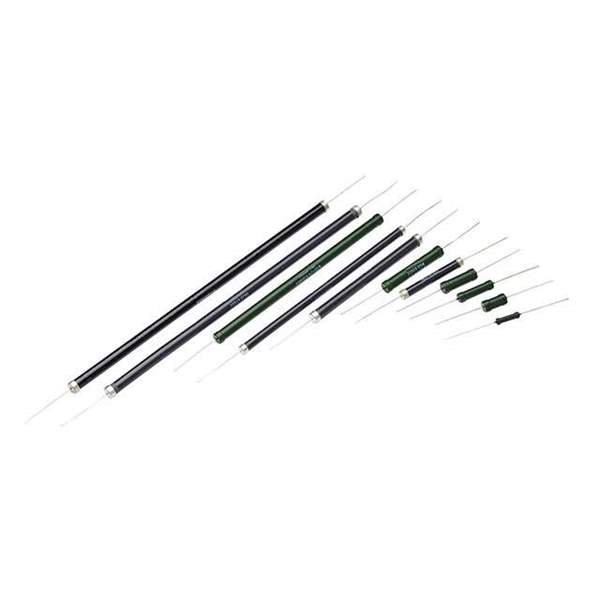

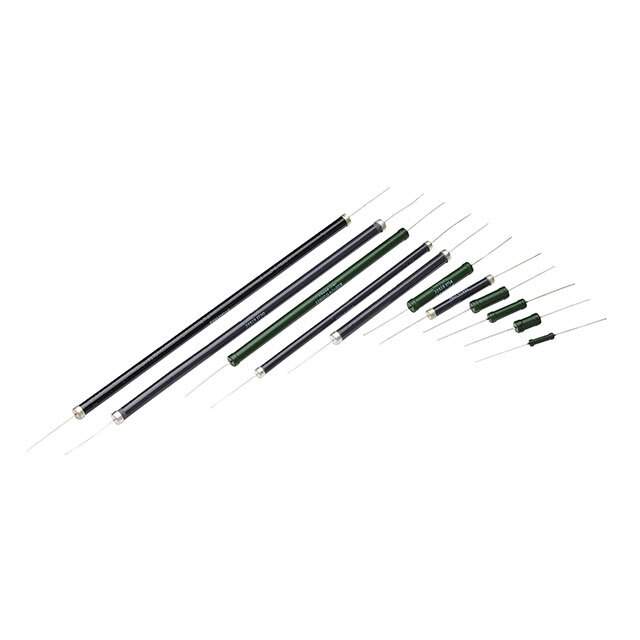

102AS152KDS Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr Ohmite
Series 100
Package Box
Resistance 1.5 kOhms
Tolerance ±10%
Power (Watts) 5W
Composition Ceramic
Features Moisture Resistant, Non-Inductive, Pulse Withstanding
Temperature Coefficient 0/ -800ppm/°C
Temperature Range - Operating -55°C ~ 230°C
Package / Case Axial
Supplier Device Package Axial
Dimension 0.311" Dia x 2.126" L (7.90mm x 54.00mm)
Number of Terminations 2
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.21.0090
Standard Package 10
Win Source Part Number 1046002-102AS152KDS
Ultra Librarian 3D Model Ultra Librarian 102AS152KDS CAD Model

Description

This ceramic resistor is a high-quality electronic component that comes with a 1.5 kOhms resistance and a 5W power rating.

  • Resistance: 1.5 kOhms
  • Power Rating: 5W
  • Series: 100
  • Features: Moisture-Resistant, Non-Inductive, Pulse-Withstanding
  • Temperature Coefficient: 0/-800ppm/°C
  • Operating Temperature: -55°C to 230°C
  • Package: Axial
  • Terminations: 2
  • Supplier Device Package: Axial
  • Application: Through-Hole Resistors
  • Packaging: Box
  • Standard Package: 10
