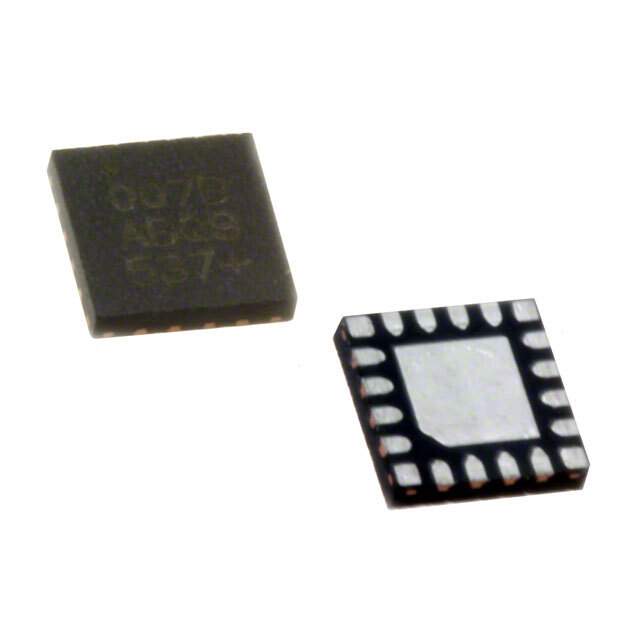

The CPT007B-A01-GM is a capacitive touch sensor IC manufactured by Silicon Labs. It is designed to detect touch events through capacitive sensing, allowing for touch-based control in various applications. These sensors can detect the presence of a finger or other conductive object near a sensing pad.

Applications:

• Touch Panels: Implementing touch-sensitive user interfaces in consumer electronics and industrial equipment.
• Touch Buttons: Replacing mechanical buttons with capacitive touch buttons.
• Proximity Detection: Detecting the presence of an object without physical contact.
• Home Appliances: Touch-based control in home appliances like refrigerators, washing machines, and ovens.
• Automotive: Implementing touch controls in automotive dashboards and infotainment systems.

Features:

• Multiple Touch Channels: Supports multiple touch channels for detecting multiple touch points or buttons.
• High Sensitivity: Detects even subtle touch events with high sensitivity.
• Low Power Consumption: Suitable for battery-powered applications.
• Auto-Calibration: Automatically calibrates for environmental variations and sensor drift.
• Digital Output: Provides a digital output signal indicating touch events.

Benefits:

• Reliable Touch Detection: Provides reliable touch detection even in challenging environments.
• Low Power Operation: Minimizes power consumption in battery-powered applications.
• Easy Integration: Simple interface and auto-calibration simplify the integration process.
• Robust Performance: Resistant to noise and environmental variations.
• Sleek Design: Enables sleek and modern designs by eliminating mechanical buttons.

Additional Details:

The CPT007B-A01-GM supports multiple sensing channels (check datasheet for the specific number). The device communicates via an I2C or SPI interface. Auto-calibration features compensate for changes in temperature, humidity, and sensor pad capacitance. The supply voltage range is typically 2.2V to 3.6V. Always consult the datasheet for specific operating conditions, sensitivity settings, and configuration options. The sensor's performance depends on the design of the sensing electrodes and the surrounding PCB layout. Shielding and proper grounding are essential for minimizing noise and improving touch detection accuracy.

The CPT007B-A01-GM is a versatile and reliable capacitive touch sensor IC suitable for a wide range of touch-based applications. Always refer to the manufacturer's datasheet for the most accurate and up-to-date specifications.
