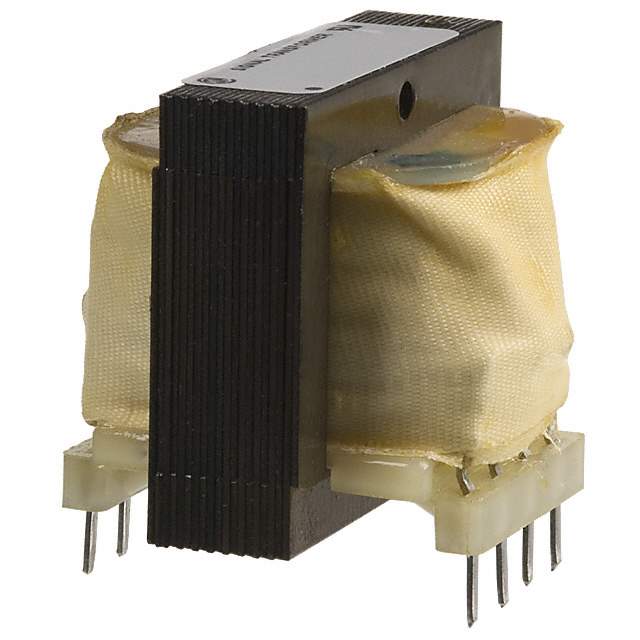

DPC-10-90 Real Image
Same model may have multiple batches, images only for reference.

DPC-10-90

Part No DPC-10-90
Manufacturer Signal Transformer
Catalog Power Transformers
Description PWR XFMR LAMINATED 1VA TH
Datasheet
DPC-10-90 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Power Transformers
Manufacturer Signal Transformer
Packaging Bulk
Type Laminated Core
Voltage - Primary 115V, 230V
Voltage - Secondary (Full Load) Parallel 5V, Series 10V
Current - Output (Max) Parallel 180mA, Series 90mA
Primary Winding(s) Dual
Secondary Winding(s) Dual
Center Tap No
Power - Max 1VA
Mounting Through Hole
Termination Style PC Pin
Size / Dimension 25.40mm L x 34.92mm W
Height - Seated (Max) 21.08mm
Voltage - Isolation 1500Vrms
Weight 0.157 lb (71.21 g)
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4035
Other Part Number DPC-10-90-ND,595-1907,Q8656492
Standard Package 100
Win Source Part Number 1329759-DPC-10-90
Ultra Librarian 3D Model Ultra Librarian DPC-10-90 CAD Model

Description

The Signal Transformer DPC-10-90 is a power transformer with a laminated core.

  • Core Type: laminated
  • Packaging: bulk
  • Mounting Type: through hole
  • Maximum Power: 1VA
  • Weight: 0.157 lb (71.21 g)
  • Voltage Isolation: 1500Vrms
  • Feature: dual primary and secondary winding
