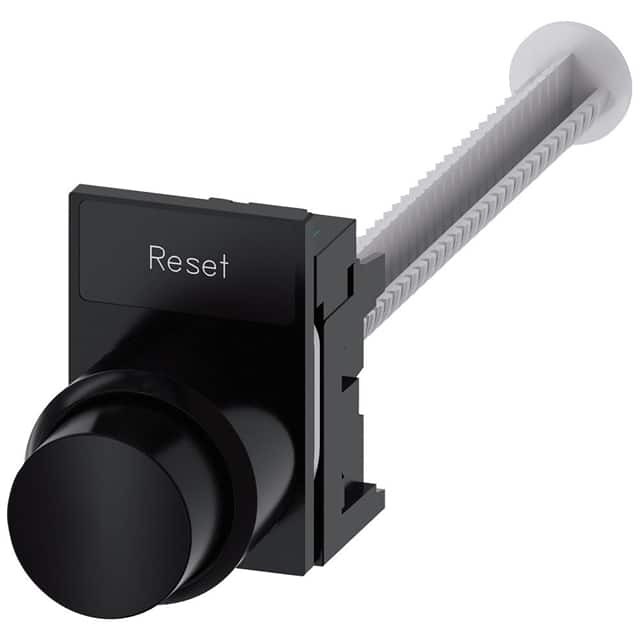

3SU12000KB100AA0 Siemens
Same model may have multiple batches, images only for reference.

3SU12000KB100AA0

Part No 3SU12000KB100AA0
Manufacturer Siemens
Catalog Pushbutton Switches
Description PUSHBUTTON. BLACK. EXTENDED STRO
Datasheet
3SU12000KB100AA0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Pushbutton Switches
Mfr Siemens
Series 3SU1
Package Box
Product Status Active
Mounting Type Panel Mount, Front
Type Standard
Actuator Type Round, Button
Color - Actuator/Cap Black
Ingress Protection IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof
Panel Cutout Dimensions Circular - 22.30mm Dia
Temperature Range - Operating -25°C ~ 70°C
Mechanical Life 5,000,000 Cycles
Base Product Number 3SU1200
Standard Package 1 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9035
Win Source Part Number 998368-3SU12000KB100AA0
Ultra Librarian 3D Model Ultra Librarian 3SU12000KB100AA0 CAD Model

Description

The 998368-3SU12000KB100AA0 is a pushbutton switch from Siemens.

  • Series: 3SU1
  • Type: Standard
  • Mounting Type: Panel Mount, Front
  • Ingress Protection: IP66/IP67/IP69K
  • Panel Cutout Diameter: 22.30mm
  • Actuator Type: Round
  • Actuator Color: Black
  • Mechanical Life: 5,000,000 cycles
  • Operating Temperature: -25°C to 70°C
