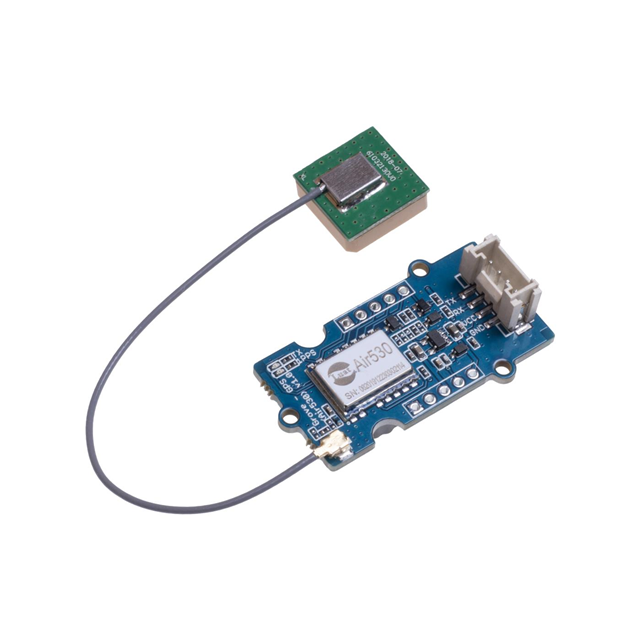

109020022 Real Image
Same model may have multiple batches, images only for reference.

109020022

Part No 109020022
Manufacturer Seeed Technology Co., Ltd
Catalog Evaluation Boards - Expansion Boards
Description GROVE - GPS (AIR530)
Datasheet
109020022 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers - Evaluation Boards - Expansion Boards, Daughter Cards
Mfr Seeed Technology Co., Ltd
Package Bulk
Product Status Active
Platform Grove
Type RF
Function GPS
Utilized IC / Part Air530
Contents Board(s), Cable(s)
Interconnect System Grove
Standard Package 1 pcs
MSL Level 1 (Unlimited)
ECCN 7A994
HTSUS 8526.91.0040
Win Source Part Number 860807-109020022
Ultra Librarian 3D Model Ultra Librarian 109020022 CAD Model

Description

The 860807-109020022 is an evaluation board expansion card designed for GPS functionality from Seeed Technology Co., Ltd.

  • Type: RF
  • Packaging: Bulk
  • Package Quantity: 1 Piece
  • Designed For: Air530 IC/Part
  • Compatibility: Grove Platform
  • Package Contents: Board, Cables
  • ECCN: 7A994
  • HTSUS Code: 8526.91.0040
