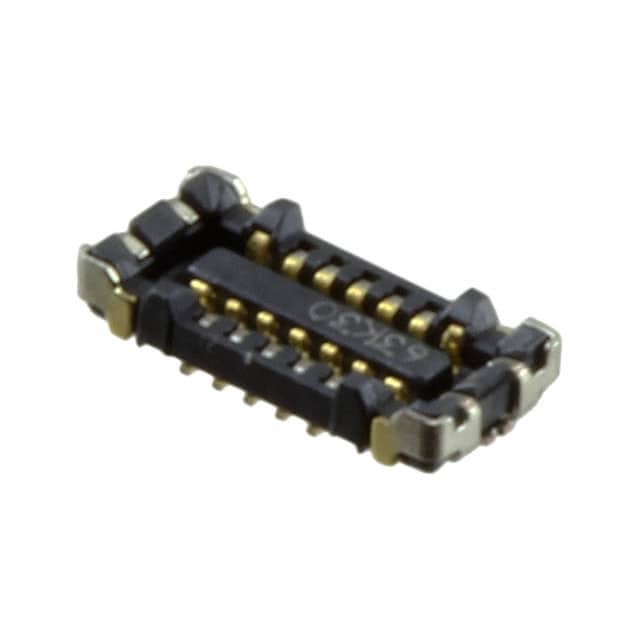

WP25D-S010VA1-R8000

Name: WP25D-S010VA1-R8000
Brand: JAE Electronics
SKU: 903279
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	WP25D-S010VA1-R8000
Manufacturer	JAE Electronics
Catalog	Rectangular Connectors
Description	CONN RCPT 10POS SMD GOLD / 10 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Datasheet	WP25D-S010VA1-R8000 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	JAE Electronics
Series	WP25D
Package	Tape & Reel
Product Status	Not For New Designs
Connector Type	Receptacle, Center Strip Contacts
Number of Positions	10
Pitch	0.014" (0.35mm)
Number of Rows	2
Mounting Type	Surface Mount
Features	Solder Retention
Contact Finish	Gold
Contact Finish Thickness	4.00µin (0.100µm)
Mated Stacking Heights	0.7mm
Height Above Board	0.028" (0.71mm)
Base Product Number	WP25D-S0
Standard Package	8,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	903279-WP25D-S010VA1-R8000
Ultra Librarian 3D Model	Ultra Librarian WP25D-S010VA1-R8000 CAD Model

Description

The WP25D-S010VA1-R8000 is a rectangular connector array from JAE Electronics.

Type: Receptacle Connector
Contacts: Center Strip
Positions: 10
Pitch: 0.014" (0.35mm)
Features: Solder Retention
Contact Finish: Gold
Contact Finish Thickness: 4.00µin (0.100µm)
Mounting: Surface Mount
Height Above Board: 0.028" (0.71mm)
Package: Tape & Reel
Standard Package: 8,000 pcs
Series: WP25D
Status: Not recommended for new designs
