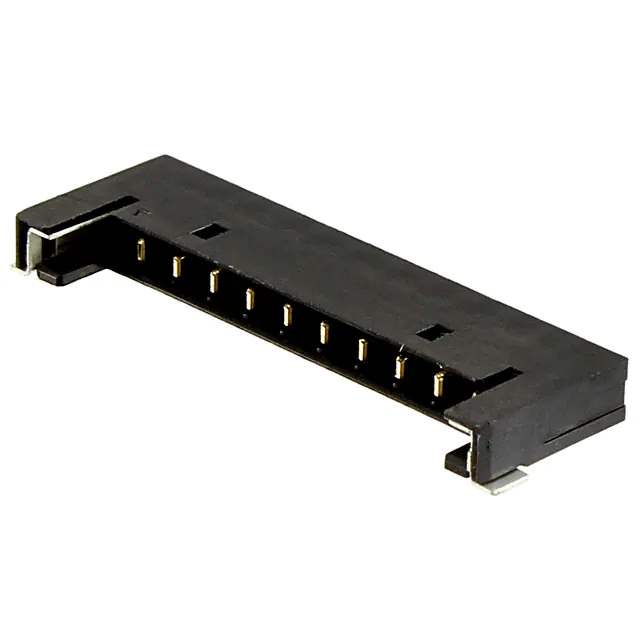

Part No 5040501091
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 10POS 1.5MM / Connector Header Surface Mount, Right Angle 10 position 0.059" (1.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Molex, LLC
Series Pico-Lock 504050
Package Tape & Reel
Product Status Active
Connector Type Header
Contact Type Male Blade
Pitch - Mating 0.059" (1.50mm)
Number of Positions 10
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Detent Lock
Insulation Height 0.079" (2.00mm)
Contact Shape Rectangular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 3.94µin (0.100µm)
Contact Finish - Post Gold
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 150V
Applications Automotive, General Purpose, Industrial, Lighting, Telecommunications
Base Product Number 504050
Standard Package 2,700 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 856313-5040501091
Ultra Librarian 3D Model Ultra Librarian 5040501091 CAD Model

Description

The Pico-Lock 504050 series is a set of male pin headers designed for use in connectors and interconnects.

  • Feature: Solder retention
  • Row: Single
  • Positions: 10
  • Applications: Automotive, general purpose, industrial, lighting, and telecommunications
  • Contact Material: Copper alloy
  • Voltage Rating: 150V
  • Flammability Rating: UL94 V-0
  • Mounting: Surface mount and right angle
  • Shrouded: 4 walls
  • Pitch: 0.059" (1.50mm)
  • Mating Contact Finish: Gold
  • Operating Temperature: -40°C to 105°C
  • Package: Tape & reel
  • Standard Package Quantity: 2,700 pcs
